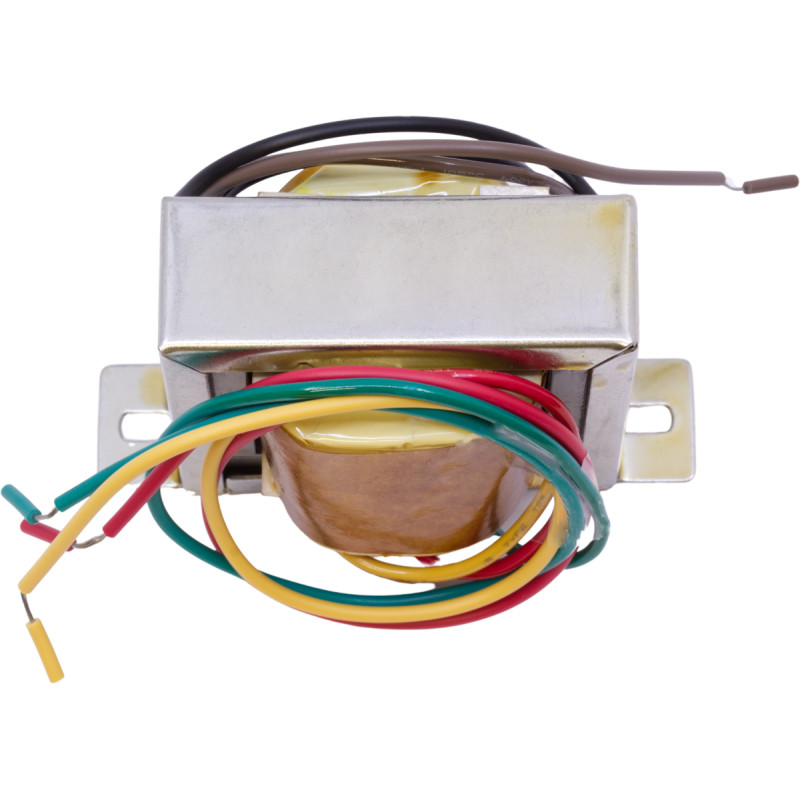

Transformer, Output, 15W, 8kΩ CT Primary, for Fender Deluxe 5E3
USD
$30.45
Seller:
amplifiedparts
99.9% positive
(50,697 reviews)
Tempe, US
Out of Stock
US
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| MPN | TGO-002 |
|---|---|
| Compatible Brand | Any |
| Compatible Model | Any |
| Features | None |
| Type | Transformer |
| Input Impedance | 8000 Ω Center Tapped |
| Output Impedance | 8 Ω |
| Output Power | 15 W |
| Typ. DC Resistance Primary (Green-Red) | 147.2 Ω |
| Typ. DC Resistance Primary (Red-Yellow) | 195.3 Ω |
| Typ. DC Resistance Secondary (Blk-Brown) | 0.493 Ω |
| Typ. Inductance @ 1.0 kHz, 1.0 V OC Primary (Green-Red) | 3.67 H |
| Typ. Inductance @ 1.0 kHz, 1.0 V OC Primary (Red-Yellow) | 3.67 H |
| Typ. Inductance @ 1.0 kHz, 1.0 V OC Secondary (Blk-Brown) | 16.7 mH |
| Typ. Leakage Inductance @ 1.0 kHz, 1.0 V SC Green-Red | 40.47 mH |
| Typ. Leakage Inductance @ 1.0 kHz, 1.0 V SC Red-Yellow | 19.31 mH |
| Typ. Impedance @ 1.0 kHz, 1.0 V OC Primary (Green-Red) | 24.15 kΩ |
| Typ. Impedance @ 1.0 kHz, 1.0 V OC Primary (Red-Yellow) | 24.15 kΩ |
| Typ. Impedance @ 1.0 kHz, 1.0 V OC Secondary (Blk-Brown) | 113.3 Ω |
| Item Height | 2.285 in. |
| Item Length | 3.695 in. |
| Item Width | 2.025 in. |
| Mounting Hole Center to Center A | 3.125 in. |
| Mounting Hole Diameter | 0.312 x 0.172 in. |
