Product Description

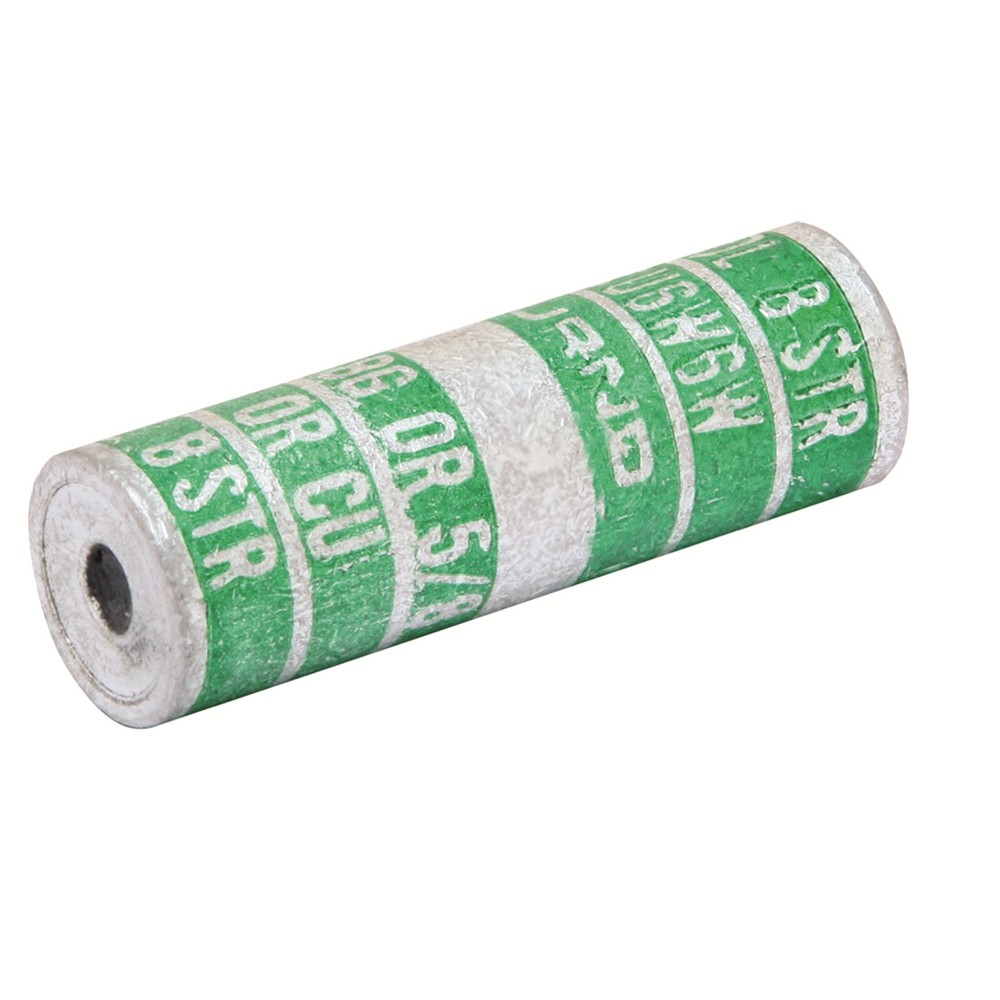

Burndy YSU2R2W is a heavy-walled aluminum service entrance compression sleeve with an internal solid barrier engineered to minimize galvanic corrosion. The connector is prefilled with PENETROX joint compound and strip-sealed, tin hot-dipped plated, and accommodates neutral strands of Type SE and combinations of copper, aluminum, ACSR, 6201, 5005 and compressed conductors. Overall length is 2 in with a 0.65 in outside diameter and installs with standard tooling.

Heavy-walled aluminum tubing with internal solid barrier to minimize galvanic corrosion
Prefilled with PENETROX joint compound and strip-sealed; tin hot-dipped plated
Compatible with copper, aluminum and ACSR conductors; overall length 2 in, outside diameter 0.65 in

Product Highlights

Service entrance, uninsulated center-stop compression connector; tin-plated; prefilled oxide inhibitor; compatible with AL/CU/ACSR conductors; 2 in length

Product Information

Standard Information

Brand: BURNDY
Manufacturer Part Number: YSU2R2W
Country of Origin: United States

Technical Specifications

Manufacturer: Burndy
Manufacturer Part Number: YSU2R2W
Brand: BURNDY
Sub Brand / Trade Name: LINKIT
Product Type: Service entrance compression connector, uninsulated, center stop
Material: Aluminum
Plating: Tin (hot-dipped)
Filled Compound: PENETROX joint compound
Prefilled Oxide Inhibitor: Yes
Application: For combinations of copper, aluminum, ACSR, 6201, 5005 and compressed conductors
Conductor Compatibility: AL, CU, ACSR; Side A: 1/0�2/0 AWG (compact/stranded); Side B: 2 AWG solid, 3�4 AWG stranded
Length Overall: 2 in (51 mm)
Outside Diameter: 0.65 in
B Length: 0.87 in
Die Index: 243; BG or 5/8
Item Type: Service Entrance, Uninsulated, Center Stop
Cross Reference Products: CS72
Country of Origin: United States
UPC: 781810141236
GTIN: 00781810141236
RoHS Compliance: CM
EU RoHS Indicator: Yes
Certifications - UL Listed: No
Certifications - cULus: No
Certifications - CSA Approved: No
Certifications - ETL: No
Weight: 0.0225 kg

Brand	BURNDY
MPN	YSU2R2W

BURNDY YSU2R2W 2" Aluminum Service Entrance Compression Sleeve
