Product Description

The ABB 1SVR405611R1100 CR-M024DC2L PLU is a plugin control relay with a 24 VDC rated control supply voltage. It features SPDT (2 c/o) contacts, an LED indicator, and a contact rating of 250 V, 12 A. This miniature relay is suitable for electrical isolation, amplification, and signal matching between electronic controls.

Plugin control relay
24 VDC rated control supply voltage
SPDT (2 c/o) contacts

Product Highlights

Plugin control relay with SPDT contacts, LED indicator, and a 250 V, 12 A contact rating.

Product Information

Standard Information

Brand: ABB
Manufacturer Part Number: 1SVR405611R1100
Country of Origin: US

Technical Specifications

GTiN: 04013614497230
Type: Miniature
Brand: ABB
Voltage: 250 Volt
Amperage: 12 Amp
Sub Brand: CR-M
Resistance: 640 ?
12-Digit UPC: 662019362649
Applications: For Electrical Isolation, Amplification and Signal Matching Between the Electronic Controlling
Power Rating: 0.9 W
Mounting Type: 8 Blade Socket
Number of Poles: 1 Pole
Contact Material: Silver Nickel
Operating Cycles: 20000000
Temperature Rating: -40 to 70 degrees C
Contact Configuration: SPDT - 2 CO
Manufacturer: ABB
MPN: 1SVR405611R1100
Product Type: ELECTRONIC_COMPONENT
Category: Business & Industrial
Function: Pluggable miniature interface relay CR-M
Rated Control Supply Voltage: 24 V DC
Output Signal: 250 V / 12 A
Output: 2 c/o (SPDT) contacts
Contact material: silver-nickel alloy (AgNi)
Product Main Type: CR-M
Sub-Function: Relay with built in LED
RoHS Status: Following EU Directive 2011/65/EU
Object Classification Code: K
ETIM 4: EC001437 - Switching relay
ETIM 5.0: EC001437 - Switching relay
ETIM 6.0: EC001437 - Switching relay
ETIM 7: EC001437 - Switching relay
eClass: 7.0 27371601
Product Net Width: 21.2 mm
Product Net Height: 35.6 mm
Product Net Depth / Length: 27.5 mm
Product Net Weight: 0.033kg
Product Series: CR-M
Family Series: ABB Relays, CR-M Series
Description: Relay, DPDT, 12A, 24VDC, w/LED, CR-M024DC2L
Coil Voltage: 24 VDC
Contacts: DPDT
Mounting: Plug In
Termination: .110 " Flat Blade
Enclosure: Plastic
Status Indicator: Yes
Nominal Coil Voltage: 24 VDC
Safety Guided: No
Approvals: CCC, CSA, cUR, UR, VDE
Model: 1SVR405611R1100

Brand	ABB
MPN	1SVR405611R1100

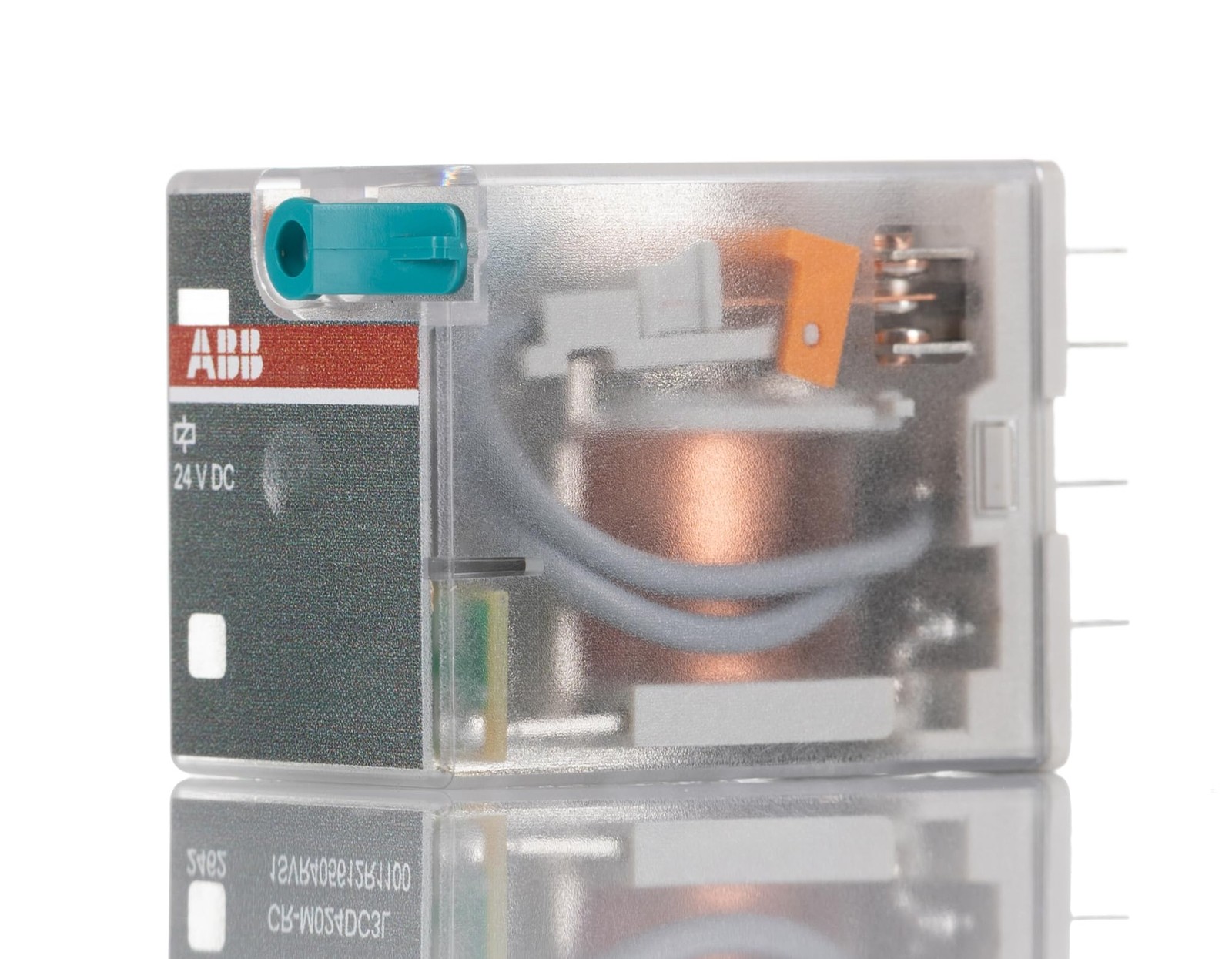

ABB 1SVR405611R1100 CR-M024DC2L 24VDC SPDT Relay
