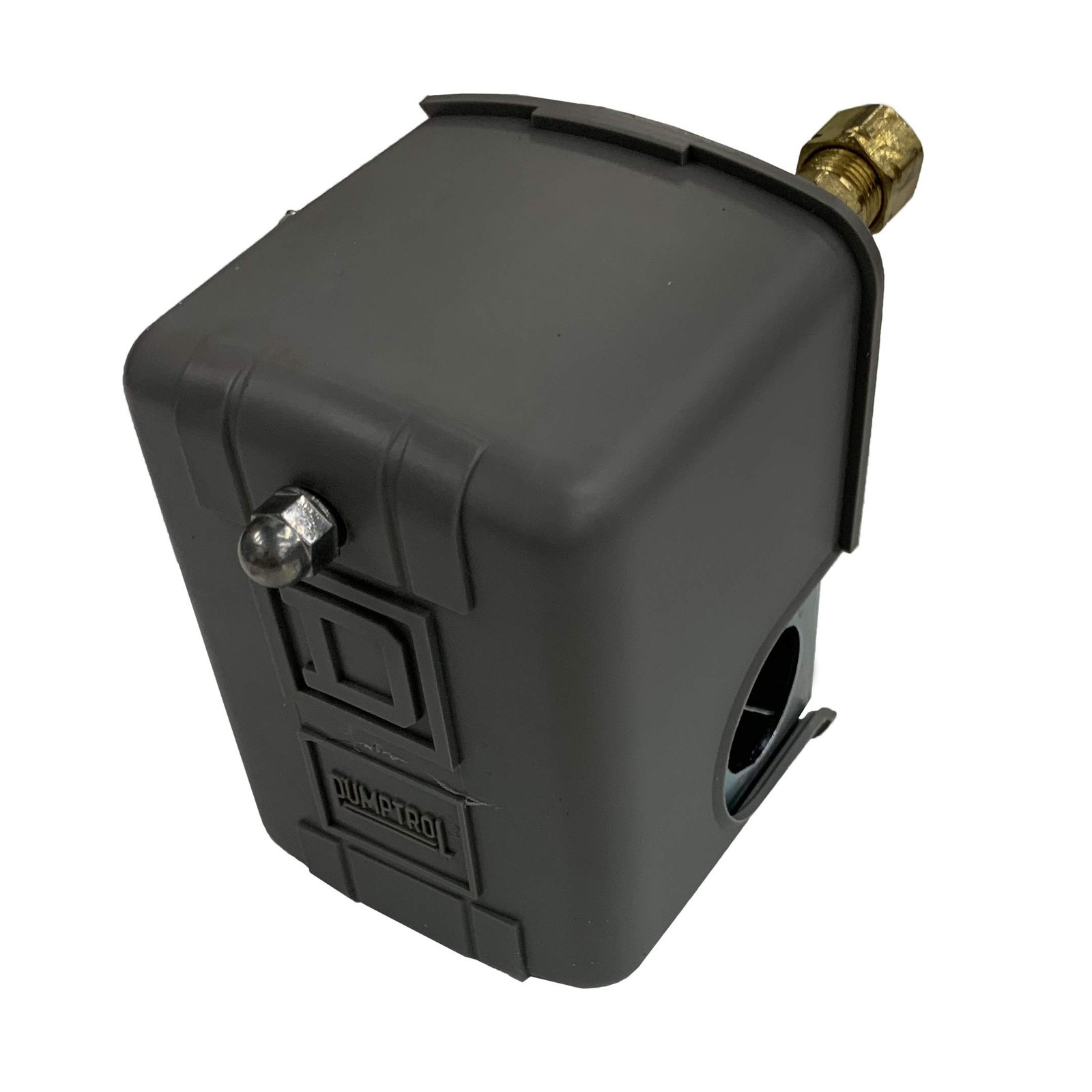

Square D 135-175 PSI Air Compressor Pressure Switch, Pumptrol, Hinge Lever Actuator, Grey, Manual Operation

Product Details

Operation Mode: manual
Current Rating: 15 A
Operating Voltage: 110 volts
Contact Type: Normally Open
Connector Type: Npt, Compression
Brand: I.E.E
Switch Type: Pressure Switch
Terminal: Screw
Material: Metal
Circuit Type: 2-way
Operation Mode: manual
Current Rating: 15 A
Operating Voltage: 110 volts
Contact Type: Normally Open
Connector Type: Npt, Compression
Switch Type: Pressure Switch
Terminal: Screw
Circuit Type: 2-way
Mounting Type: Panel Mount
Actuator Type: Hinge Lever
Number of Positions: 2
Controller Type: Push Button
Control Method: Touch
Connectivity Protocol: X-10
Wattage: 8625 watts
Control Type: manual
Compatible Devices: 2-stage air compressors (100-200 PSI)
Color: Grey
Unit Count: 1 Count
Number of Items: 1
Material Type: Metal
Contact Material: Stainless Steel
International Protection Rating: IP54
Specification Met: cULus
Brand Name: I.E.E
Model: LF10-L4
Manufacturer: Square D
UPC: 724453991844
Part Number: LF10-L4

Brand new Square D brand, Pumptrol air compressor pressure switch, model: 9013FHG42J59M1X 135-175 PSI with unloader control valve and On / Off switch.
This pressure switch is designed for a 2 stage air compressor pumping up to 175 PSI but can be adjusted anywhere from 100-200 PSI.
Model: 9013FHG42J59M1X Number of Pressure Sensing Connection Ports: One 1/4" Female NPT (Note: 1/4" NPT Measures About 1/2" In Diameter)
Unloader Connection Port: 1/4" Compression Which Accepts 1/4" Outside Diameter Copper Or High Pressure Tubing
Preset On Pressure: 135 PSI Preset Off Pressure:175 PSI Differential: 40PSI Can Be Used With Single Or Three Phase

Brand new Square D brand, Pumptrol air compressor pressure switch, model: 9013FHG42J59M1X 135-175 PSI with unloader control valve and On / Off switch. This pressure switch is designed for a 2 stage air compressor pumping up to 175 PSI but can be adjusted anywhere from 100-200 PSI. This switch features a built in On / Off metal lever and also a unloader located on the bottom of the switch. The unloader is used to unload head pressure off the compressor pump for a load free start up. If your compressor does not require a unloader valve on the pressure switch you can leave it not hooked up and the switch will still function properly. This is an authentic Square D brand pressure switch, for more specifications see below. Specifications: Brand: Square D Pumptrol Model: 9013FHG42J59M1X Number of Pressure Sensing Connection Ports: One 1/4" Female NPT (Note: 1/4" NPT Measures About 1/2" In Diameter) Unloader Connection Port: 1/4" Compression Which Accepts 1/4" Outside Diameter Copper Or High Pressure Tubing Preset On Pressure: 135 PSI Preset Off Pressure:175 PSI Differential: 40PSI Can Be Used With Single Or Three Phase Can Be Used With 110 - 575 Volts Depending On Amperage And Phase Good Up To 15 Amps Of Continuous Current. (Note: If being used with a magnetic starter the amperage does not matter since all the main power is going through the starter not the pressure switch.)

EAN	0724453991844
MPN	LF10-L4
UPC	724453991844
Brand	I.E.E
