Features

■M30 × 1.5 threaded tube

■Chrome-plated brass

■Temperatures up to +120 °C

■DC 3-wire, 10…30 VDC

■NO contact, PNP output

■Cable connection

Technical data

Type NI15-M30-AP6X/S120 ID 4617210 Special version S120 corresponds to: Maximum ambient temperature = 120 °C General data Rated switching distance 15 mm Mounting conditions Non-flush Secured operating distance ≤ (0.81 × Sn) mm Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4 Repeat accuracy ≤ 2 % of full scale Temperature drift ≤ ±10 % ≤ ± 20 %, ≥ +70 °C Hysteresis 3…15 % Electrical data Operating voltage 10…30 VDC Residual ripple ≤ 10 % Uss DC rated operational current ≤ 200 mA No-load current 15 mA Residual current ≤ 0.1 mA Isolation test voltage ≤ 0.5 kV Short-circuit protection yes / Cyclic Voltage drop at Ie ≤ 1.8 V Wire breakage/Reverse polarity protection yes / Complete Output function 3-wire, NO contact, PNP Switching frequency 0.5 kHz

Mechanical data

Design Threaded barrel, M30 x 1.5 Dimensions 97 mm Housing material Metal, CuZn, Chrome-plated Active area material Plastic, PA12-GF30 End cap Plastic, PA12-GF30 Max. tightening torque of housing nut 40 Nm Electrical connection Cable Cable quality Ø 5.2 mm, SiHSi, Silicone, 2 m Core cross-section 3 x 0.5 mm2

Environmental conditions

Ambient temperature-25…+120 °C Vibration resistance 55 Hz (1 mm) Shock resistance 30 g (11 ms) Protection class IP67 Switching state LED, Yellow

Brand	TURCK
Availability	In stock
MPN	NI15-M30-AP6X

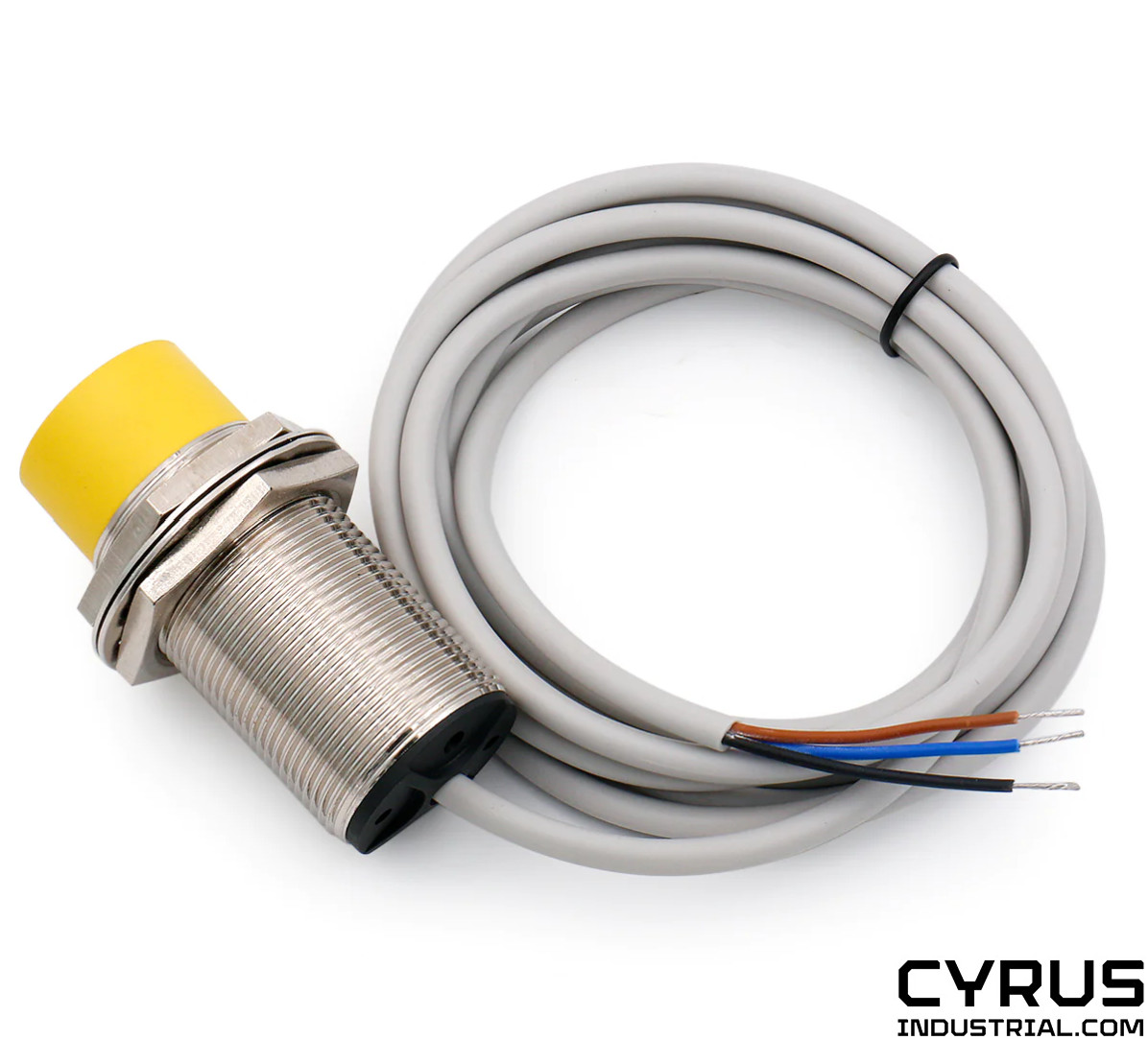

Turck NI15-M30-AP6X-H1141 | 46177 [SURPLUS] Inductive Sensor

Specifications

Returns Accepted
