Summary of Product Features:

Compliant: complies with OSHA/NFPA 70E/NEC/CSA Z462 and ANSI Z535.4 standards for labeling.
Durable: resists chemicals, moisture, and UV light.
Easy to install: die-cut makes labels easy to peel and apply.

Vinyl Label Specifications:
DuraLabel vinyl arc flash labels (specifically their Premium Vinyl line) are designed for extreme industrial environments and are the standard for electrical hazard identification.

Material & Construction

Material: High-quality, industrial-grade vinyl film.
Thickness: 3.0 mil (76.2 microns) for the film; approximately 4.0 mil total with adhesive.
Finish: Polished gloss for high visibility and resistance to debris.
Adhesive: Pressure-sensitive, permanent acrylic adhesive (1.0 mil thick).
Backing: Typically provided on a peel-off liner for easy application.

Durability & Performance

Outdoor Lifespan: Up to 5 years (guaranteed by the DuraLabel Premium Vinyl Warranty).
Service Temperature Range: -40°F to 200°F (-40°C to 93°C).
Minimum Application Temperature: 40°F (4°C).
Resistance Profile:
- UV Resistance: High (prevents fading and brittleness in direct sunlight).
- Chemical Resistance: Resists oils, alcohols, most alkalis, mild acids, and salt solutions.
- Environmental: Withstands moisture, humidity, and abrasion.

Polyester Label Specifications (Brady B-483A):
High-performance, glossy white polyester label designed for extreme adhesion on textured or low-surface-energy (LSE) surfaces.

Material: Polyester (B-483A)
Finish: Glossy White
Adhesive: Ultra-aggressive Permanent Rubber-based
Agency Approvals: UL Recognized (UL969), CSA Accepted, RoHS/WEEE Compliant
Total Thickness: 0.0040 inch (0.102 mm)
Service Temp Range: -40°F to 248°F (-40°C to +120°C)
Environmental Resistance: High resistance to Fuel, Oil, Solvents, UV, and Humidity.

Thermal Transfer Ribbon Specifications (Zebra 5095 Performance Resin):
Designed for extreme environments where durability and resistance to chemicals or heat are critical.

Ink Formulation: High-performance Resin
Base Film: Polyester
Total Caliper: 6.5 microns
Chemical Resistance: Excellent (Motor oil, Isopropyl Alcohol, Hexane, Ammonia)
Environmental: High resistance to moisture, steam, abrasion, friction, and UV.

Type	ANSI Z535.4 Danger
Brand	ZMAC SAFETY
MPN	ZMAC-4X6-1147

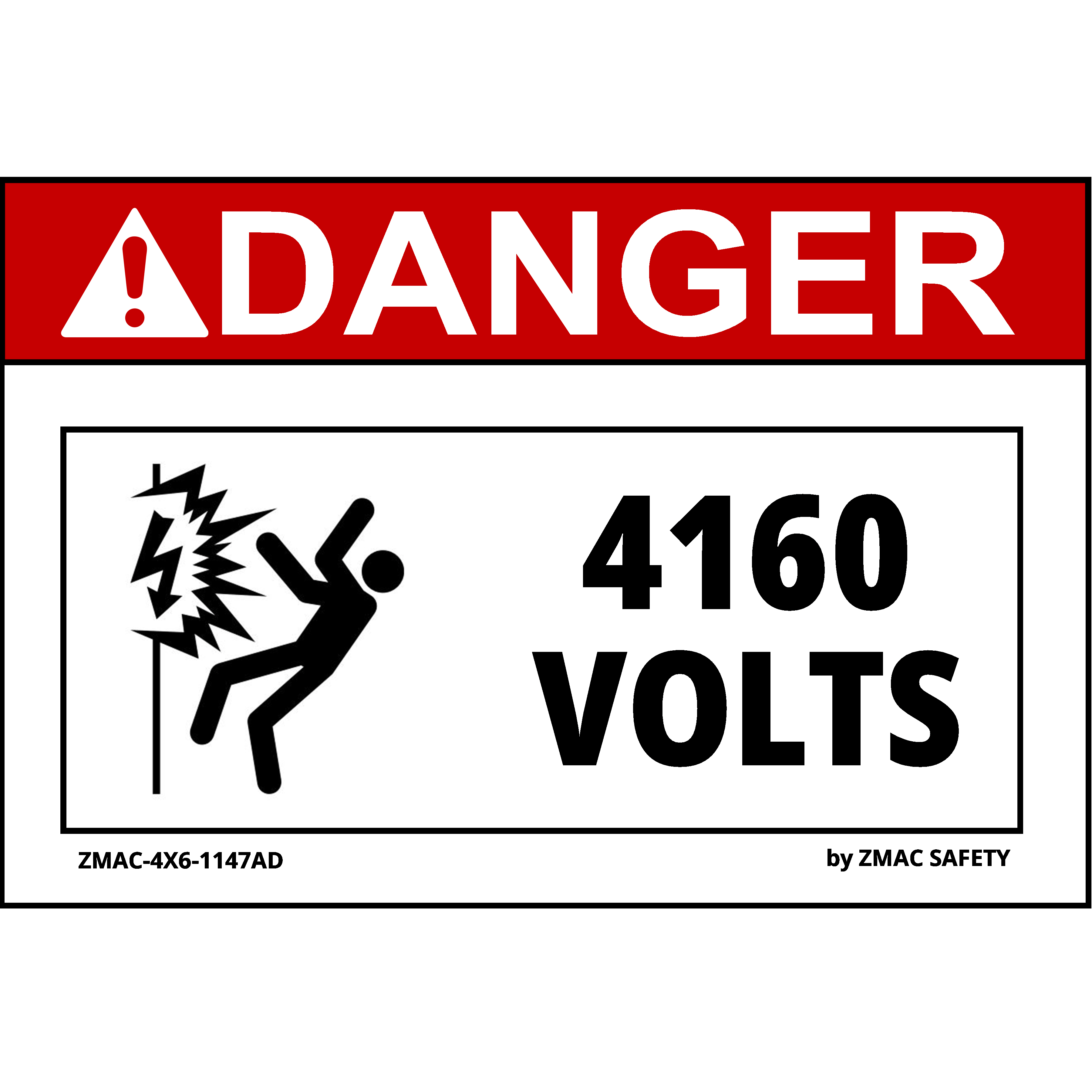

10 Pack 4"X6" Volt Rating 4160V Label Sticker Decal #1147
