2N EasyGate IP+ 4G VoLTE/VoIP lift gateway (EU/UK)

The 2N EasyGate IP+ is the extended version of the 2N EasyGate IP. It is an LTE/VoIP gateway for emergency communication between the lift car and the call centre, and it adds the interfaces needed to connect the lift controller directly: three Ethernet ports, RS232, RS485 and CAN bus. Remote diagnostics, monitoring and control work without any additional module.

Analogue lift emergency phones (for example 2N Lift1) connect to the FXS port and are carried over 4G VoLTE or SIP. DTMF is transmitted over SIP, so lift identification stays reliable where mobile networks distort analogue tones. The gateway complies with current cybersecurity standards and can be managed remotely through 2N Elevator Center.

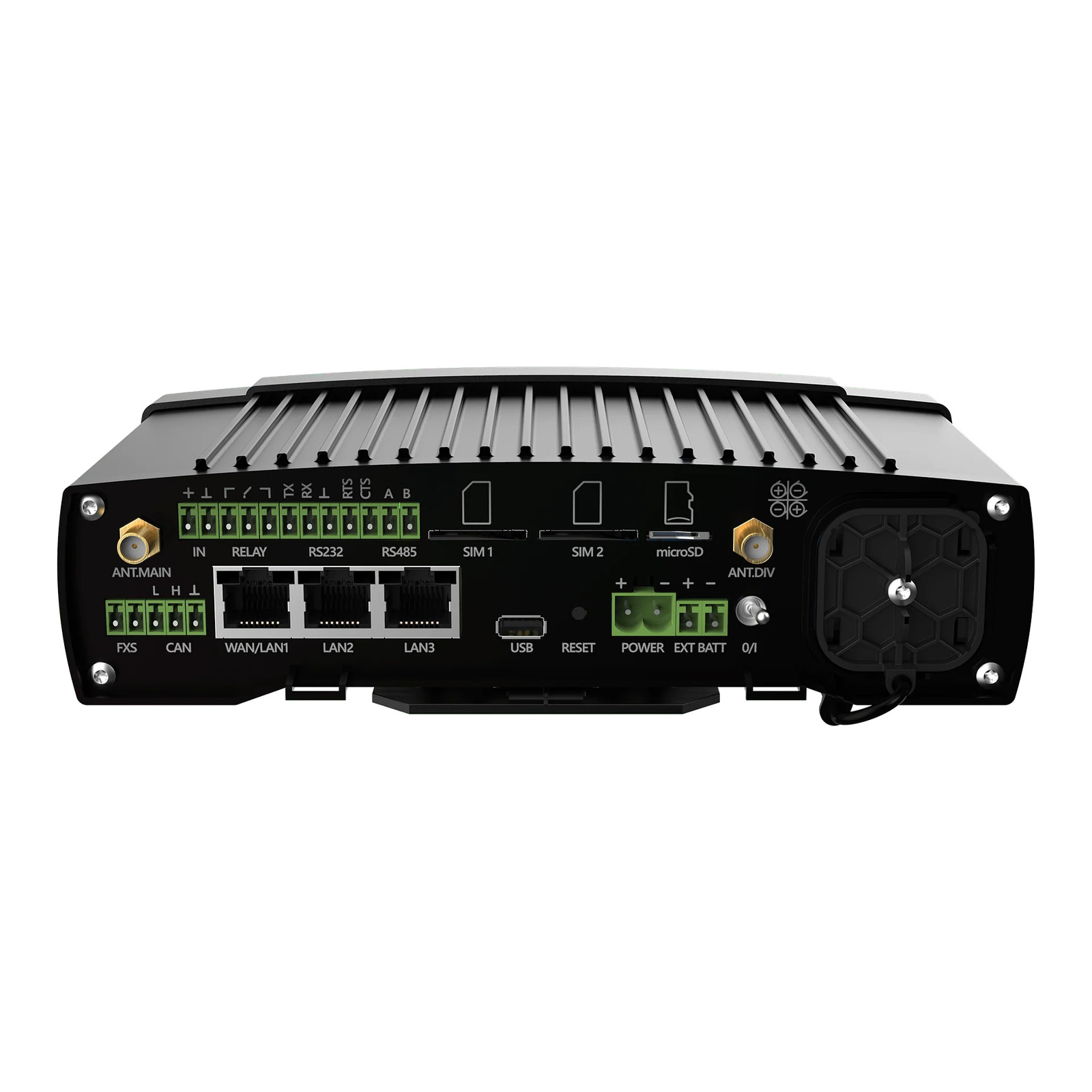

EasyGate IP+ or EasyGate IP? The difference is on the back

Interface	EasyGate IP (5023001E)	EasyGate IP+ (5025101E)
Ethernet RJ-45	None	3× (WAN/LAN1, LAN2, LAN3), 10/100/1000
RS485 and CAN bus	None	Yes, screw terminals
microSD slot	None	Yes
RS232	Yes	Yes
Relay output and input	Yes	Yes
FXS line for the lift phone	Yes	Yes
Dual SIM, 4G VoLTE, battery backup, USB config	Yes	Yes

Choose the IP+ when the gateway must connect to the lift controller over Ethernet, RS485 or CAN, or use a wired internet connection in the shaft. Choose the standard EasyGate IP for a mobile-only emergency line.

Key features

2G / 3G / 4G VoLTE on all EU/UK networks. Install on today's network, switch to 4G later without changing hardware.
Reliable DTMF through SIP-based VoIP for accurate lift car identification.
VoIP without replacing cabin hardware. Existing analogue emergency phones connect to the FXS line.
Controller interfaces built in: 3× Ethernet (1× WAN + 2× LAN, or 3× LAN), RS232, RS485, CAN.
Relay output and short-circuit input for fault signalling to the controller.
Dual SIM with automatic fallback to the second SIM on signal loss.
Backup battery (4× AA NiMH) keeps emergency calls working during a power failure.
Built for the shaft: IP43 casing, operation up to +85 °C without batteries.
Fast setup with predefined configuration templates; web UI over USB or cloud via 2N Elevator Center.

Technical specifications

Power supply

Mains adapter: 100–240 V / 12 V, 1 A (EU cable without plug)
DC input: 9–30 V DC
Backup: 4× AA NiMH 1.2 V, min. 2000 mAh, continuously monitored
Consumption at 12 V: 110 mA standby, 310 mA typical during a VoLTE/SIP call

Cellular network (EU version, module EC25-E)

LTE bands: B1 / B3 / B5 / B7 / B8 / B20 / B38 / B40 / B41
UMTS bands: B1 / B5 / B8
GSM/EDGE bands: B3 / B8
SIM cards: 2 slots, 3 V and 1.8 V
Antenna: SMA connector, 50 Ω (antenna included)

VoIP

Protocols: SIP (RFC 3261) over UDP, SIPs, SRTP, TLS
DTMF: in-band, SIP INFO (RFC 2976), RTP Event (RFC 2833)

Line interface (FXS)

Type: 2-wire analogue FXS
Call impedance: selectable 600 Ω / Zr EU / Zr Australia
Loop voltage / current: 48 V DC, 15–40 mA, loop resistance up to 800 Ω
Ring voltage / frequency: adjustable 35–60 V RMS, 10–60 Hz

Data and control interfaces

Ethernet: 3× RJ-45, 10/100/1000BaseT, configurable as 3× LAN or 2× LAN + WAN
Serial: RS232, RS485, CAN
Input: 1× short-circuit input, voltage-free
Relay output: NO and NC contacts, max 30 V DC / 1 A or 125 V AC / 0.3 A

Configuration

Local: web UI via USB
Cloud: 2N Elevator Center

Mechanical and environmental

IP rating: IP43
Operating temperature: –40 °C to +85 °C without batteries, 0 °C to +45 °C with batteries
Storage temperature: –20 °C to +45 °C
Humidity: up to 90 %, non-condensing
Status LEDs: power, mobile network, FXS line, data, signal level

Package contents

1× 2N EasyGate IP+
1× wall / DIN rail mount, dowels and screws
1× antenna
1× FXS cable
1× power supply (EU cable without plug)

Manufacturer part number: 5025101E · EAN: 8595159516257
