Product Specifications

Pump Manufacturer: Bosch Rexroth
MPN / Model: A10VSO71DFR / CEM4115T
Pump Type (per plate): AAA10VSO71DFR/31R-VKC92N00
Pump Material No. (MNR): R902400497
Pump Serial Number: 44817860
Pump Date Code (FD): 21W34
Pump Speed: 1800 min-1
Pump Displacement (Vg max): 71 cm3
Pump Pressure Values (per plate): DR 280 bar, FR 14 bar
Pump Mass: 35 kg
Pump Origin: Assembled in USA (US-Fountain Inn)
Motor Manufacturer: Baldor-Reliance (Baldor Electric Co., Fort Smith, AR)
Motor Model: Super-E CEM4115T
Motor Spec: 12C052Z279G1
Motor Serial Number: C2201261372
Horsepower: 50 HP
Voltage: 230/460 V
Amperage: 116/58 A
Phase: 3
Frequency: 60 Hz
Speed: 1775 RPM
Frame: 326TC
Enclosure: TEFC
Design: A
Code Letter: H
Insulation Class: F
Rating: 40C ambient, continuous
Service Factor: 1.15
Power Factor: 85%
NEMA Nominal Efficiency: 94.5%
Bearings: 6312 drive end, 6311 opposite end (Polyrex EM grease)
Inverter Rating: VPWM inverter ready, CT 6-60 Hz (10:1), VT 3-60 Hz (20:1)
Usable at 208 V: 126 A
Usable at 50 Hz: 50 HP, 190/380 V, 139/69.5 A
Filter: Hydac Hycon Division filter assembly; model and element codes faded and not legible
Frame / Skid: Red fabricated steel skid frame
Condition: Surplus - Untested

Product Description

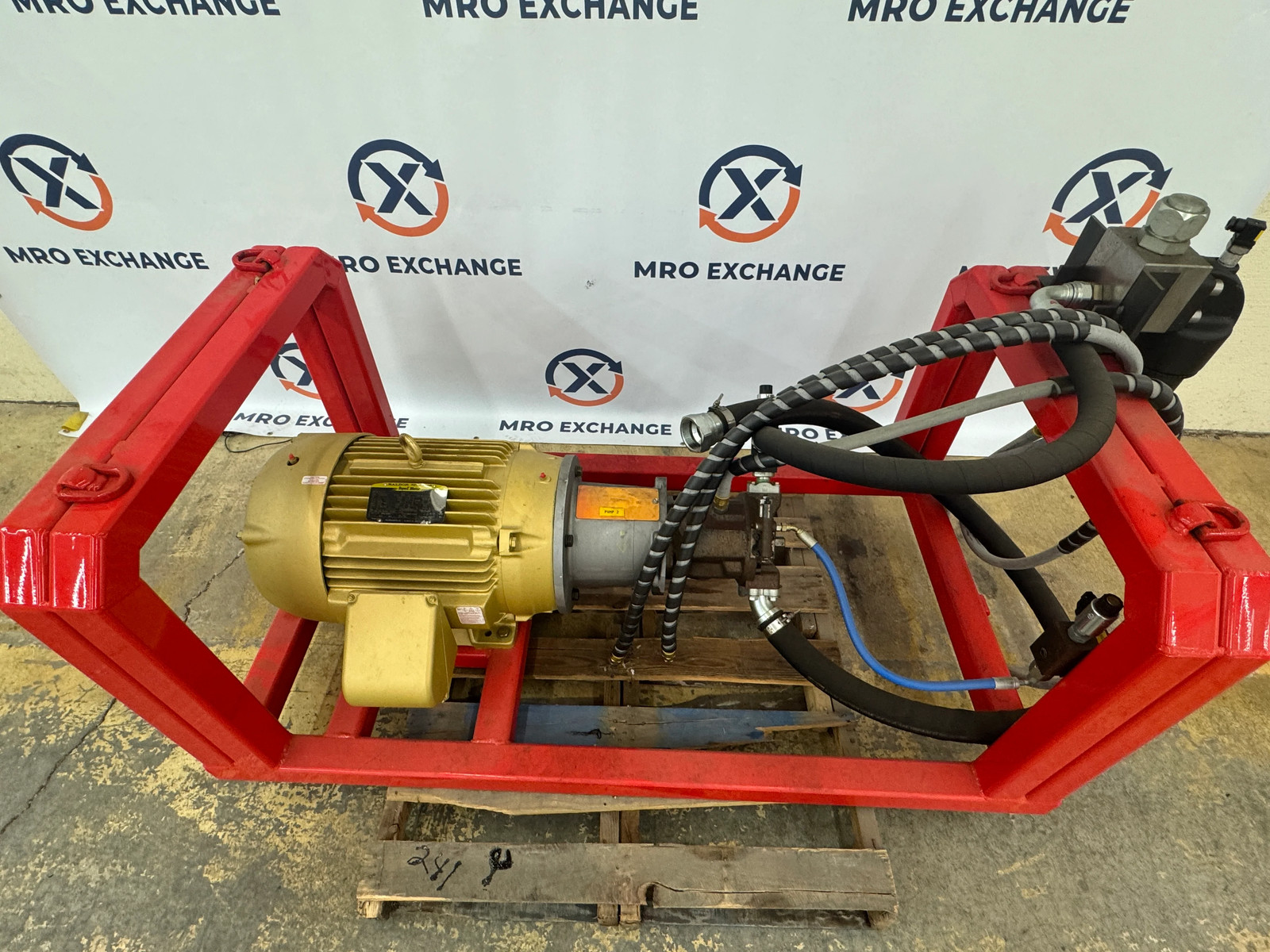

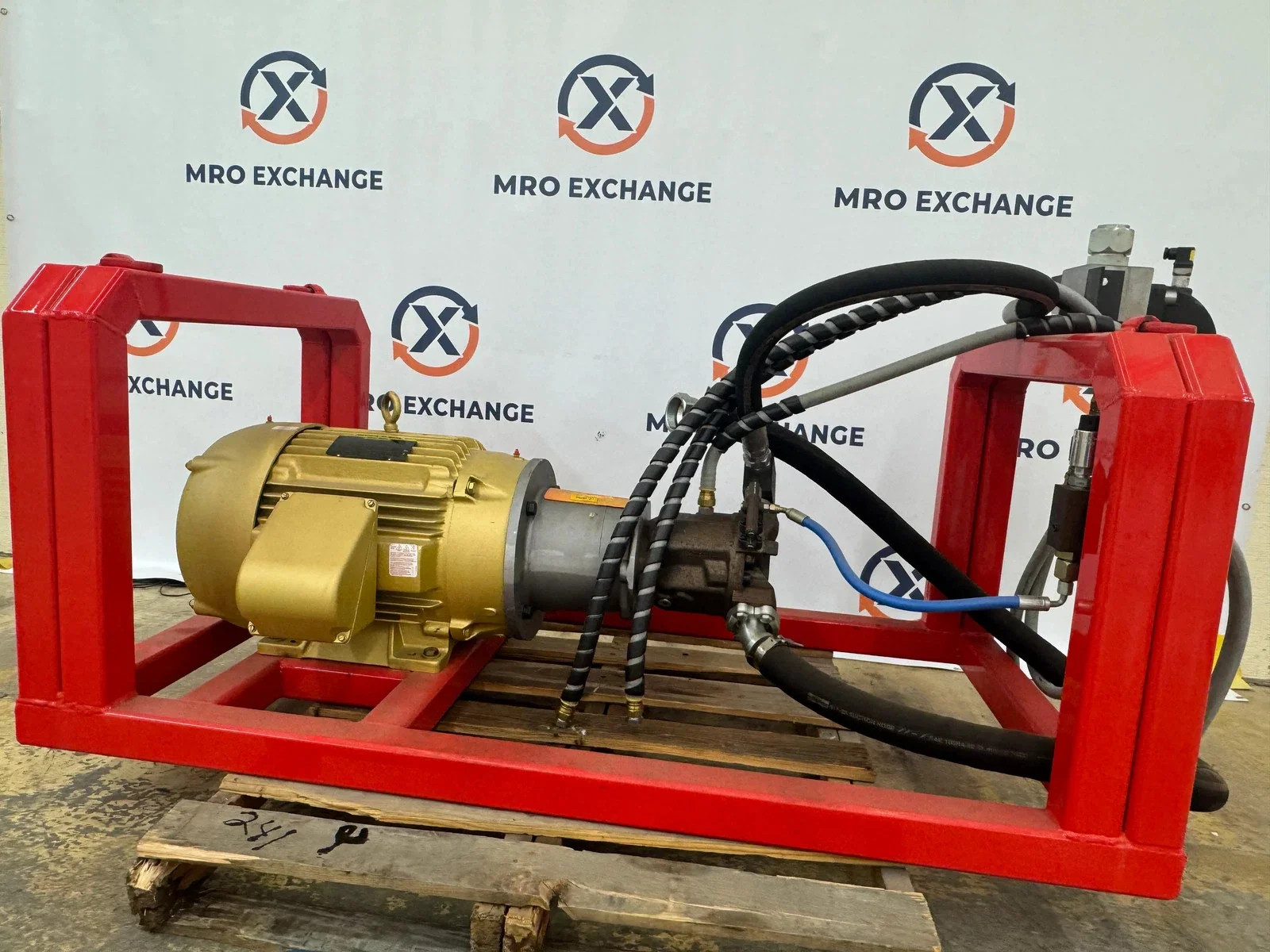

Bosch Rexroth hydraulic pump, type AAA10VSO71DFR/31R-VKC92N00, coupled through a mounting adapter to a Baldor-Reliance Super-E 50 HP motor, model CEM4115T. Both are mounted on a red fabricated steel skid frame with hydraulic hoses, a valve block and a Hydac Hycon Division filter assembly.

The Rexroth plate lists material number R902400497, serial number 44817860, date code 21W34, 1800 min-1, 71 cm3 maximum displacement, DR 280 bar, FR 14 bar and a mass of 35 kg, and is marked assembled in USA. The Baldor-Reliance nameplate lists spec 12C052Z279G1, serial number C2201261372, 50 HP, 230/460 V, 116/58 A, 3 phase, 60 Hz, 1775 RPM, frame 326TC, TEFC, design A, code H, Class F insulation, service factor 1.15, 94.5% NEMA nominal efficiency, and VPWM inverter ready ratings. The motor is marked manufactured in the USA.

Surface corrosion and dirt are visible on the pump housing, and the Hydac filter plate is faded so its codes cannot be read. No reservoir is pictured.

Sold as surplus, untested; the motor and pump have not been run or tested by MRO Exchange. Buyers should confirm pump type, port sizes and mounting against their application before purchase.

Stock # 0226-00264

Brand	Bosch Rexroth
Type	pump
MPN	A10VSO71DFR / CEM4115T

Bosch Rexroth A10VSO71DFR Hydraulic Pump 280 bar with Baldor 50 HP Motor

Specifications

Returns Accepted
