Condition description:

Pre-owned vintage test equipment. Basic operation tested: powers on, CRT produces visible horizontal trace, readout/graticule illuminate, Beam Finder responds and installed plug-ins receive power/indicate activity. Not fully tested for calibration accuracy, all channels or all functions. Please see full description and photos.

LOCAL PICKUP ONLY. IM IN ANAHEIM HILLS, 92808. WE MIGHT BE ABLE TO WORK OUT A MEETUP IF YOU LIVE A DECENT DISTANCE AWAY.

Master description

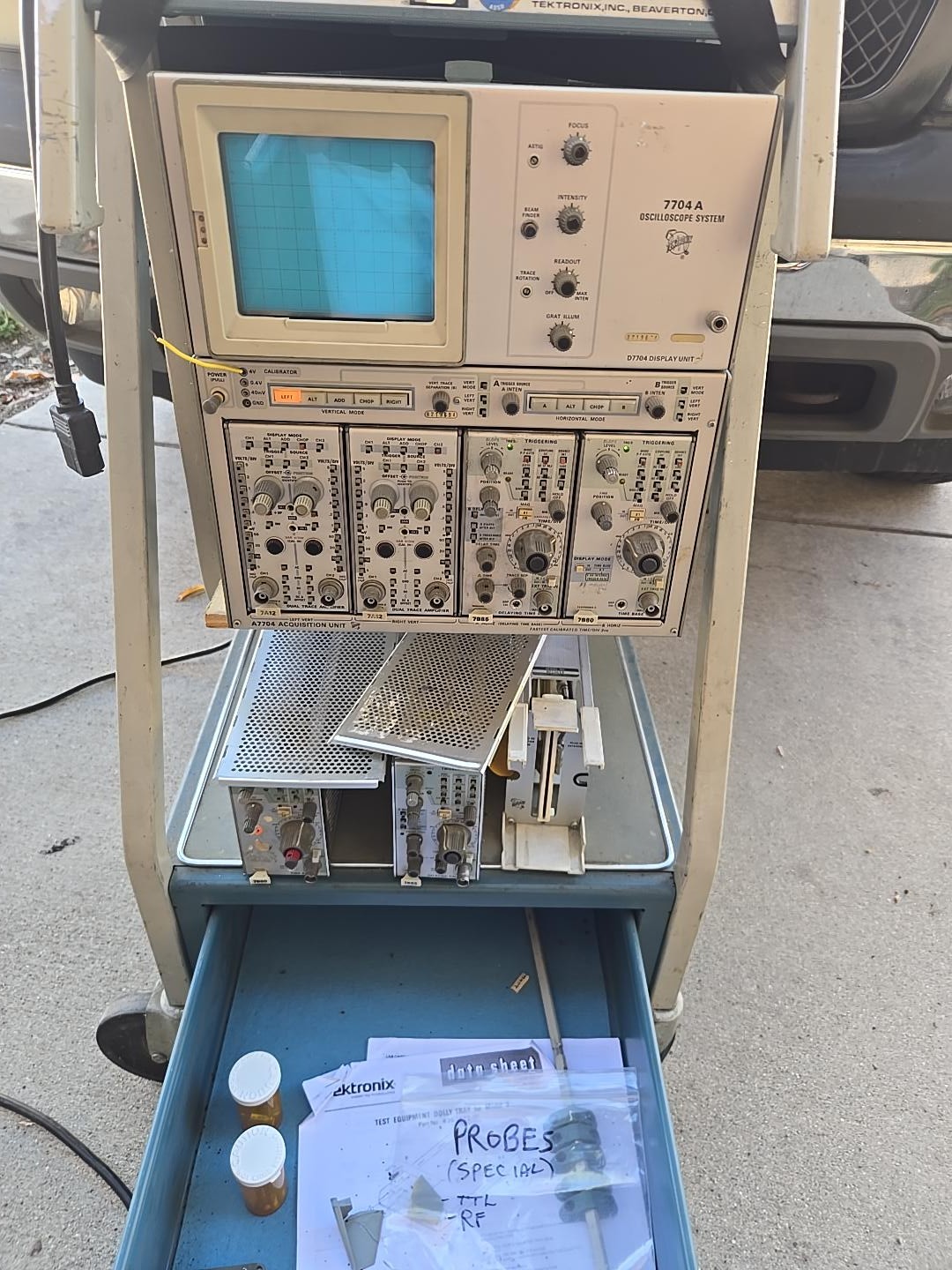

Vintage Tektronix 7704A modular oscilloscope system with Tektronix mobile equipment cart, four installed plug-in modules, additional accessories and extra Tektronix equipment.

This came from an estate workshop belonging to a radio/electronics hobbyist. The workspace contained numerous radio components, speaker drivers, test equipment and electronics parts. The oscilloscope also retains an older Hughes Aircraft Co. property label; I do not have documentation connecting the previous owner to Hughes, so the label is simply being shown as found.

Main system includes

Tektronix 7704A Oscilloscope System

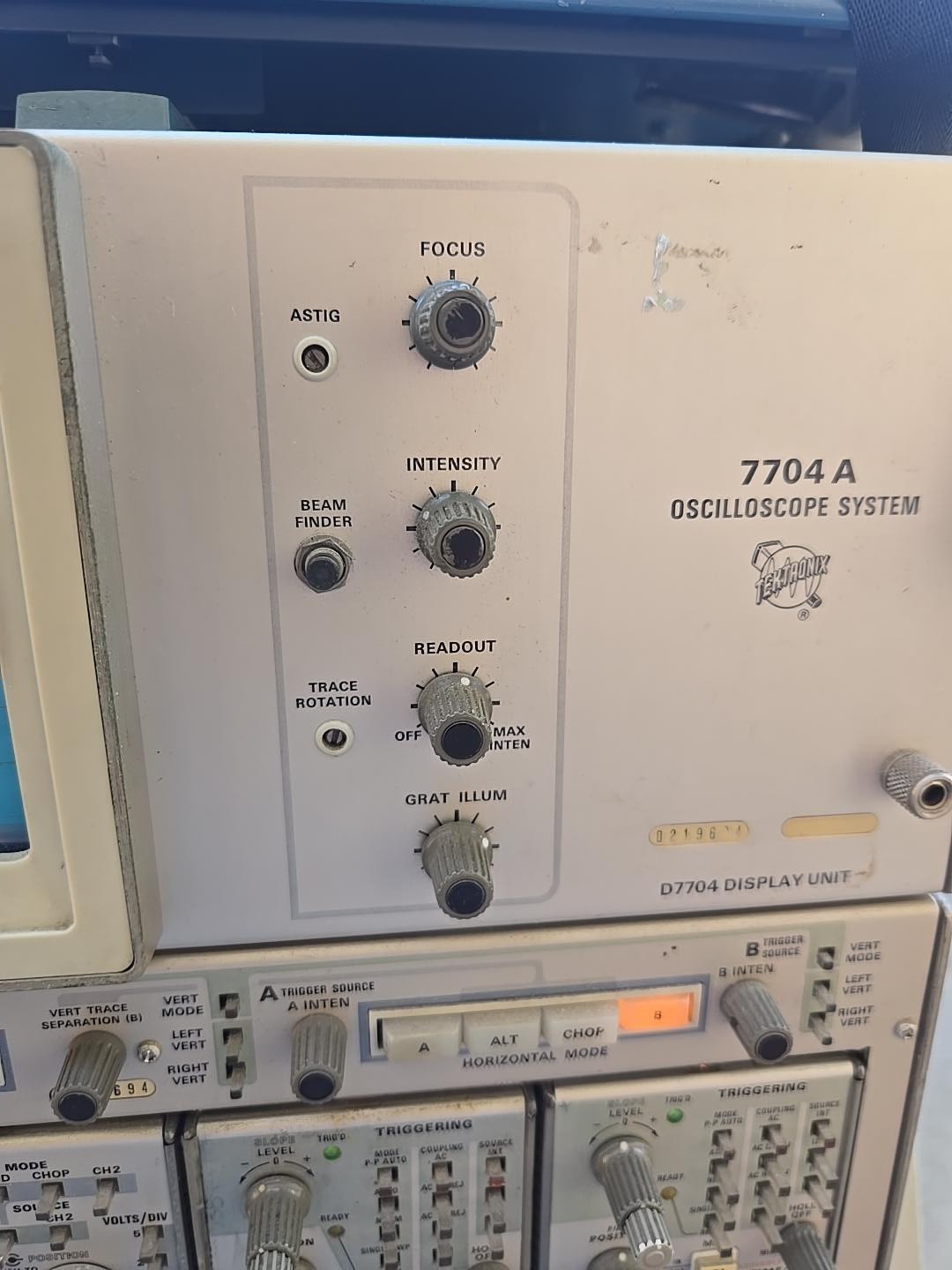

D7704 display section

A7704 acquisition section

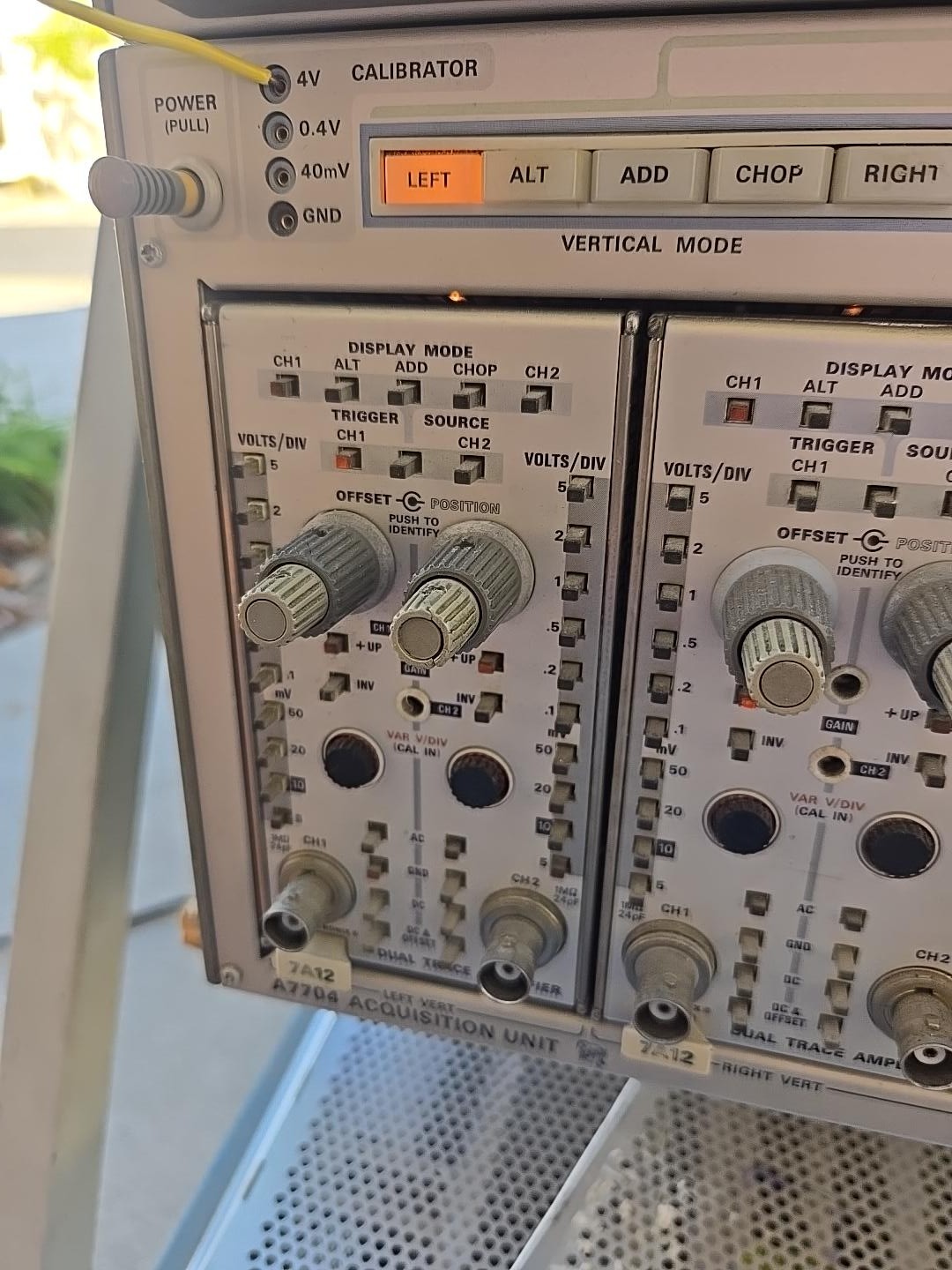

Two 7A12 Dual Trace Amplifier plug-ins

7B85 Delaying Time Base

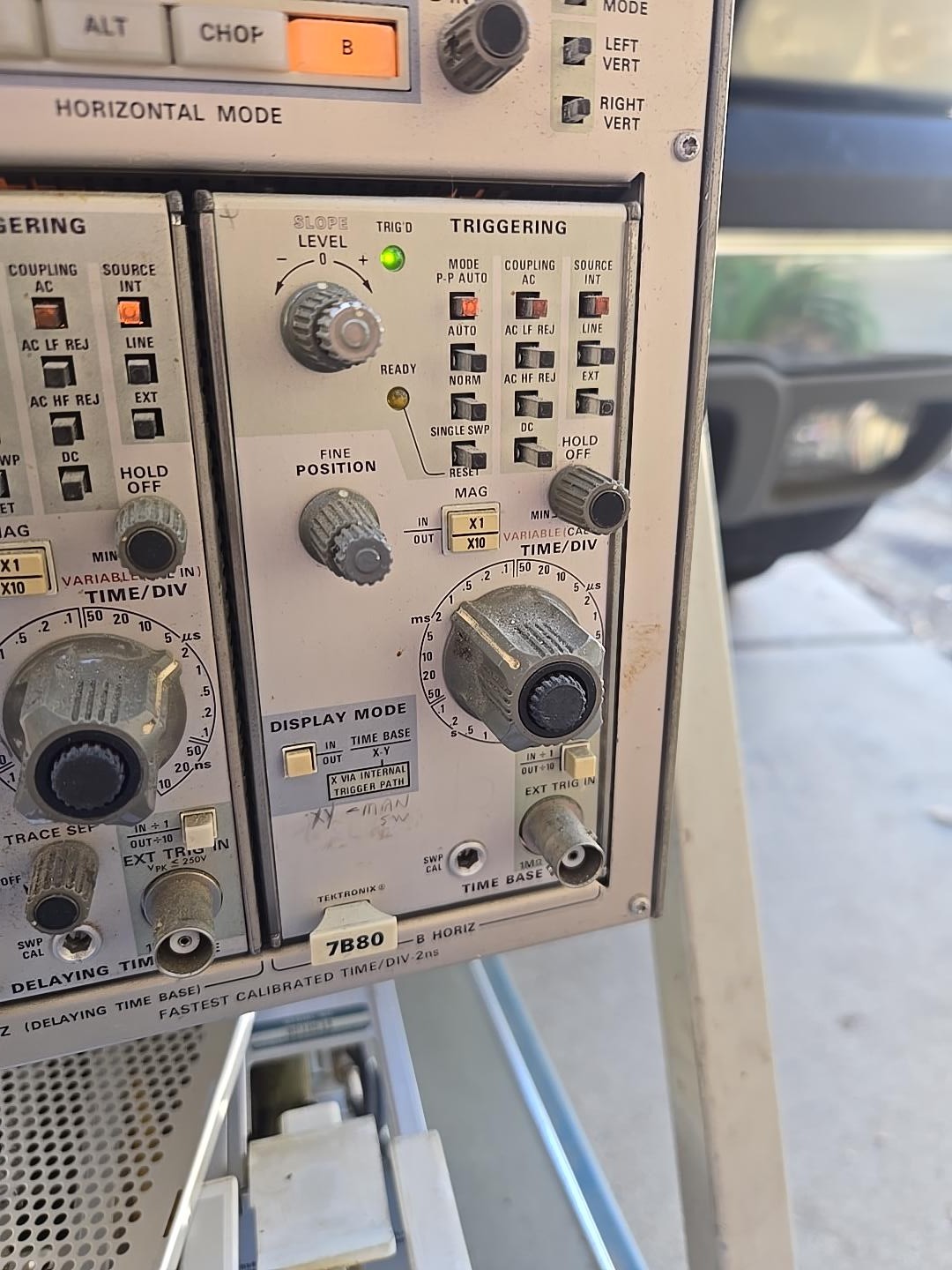

7B80 Time Base

Tek lab cart model 3 Scope-Mobile style equipment cart

Additional loose 7B80 Time Base shown in photos

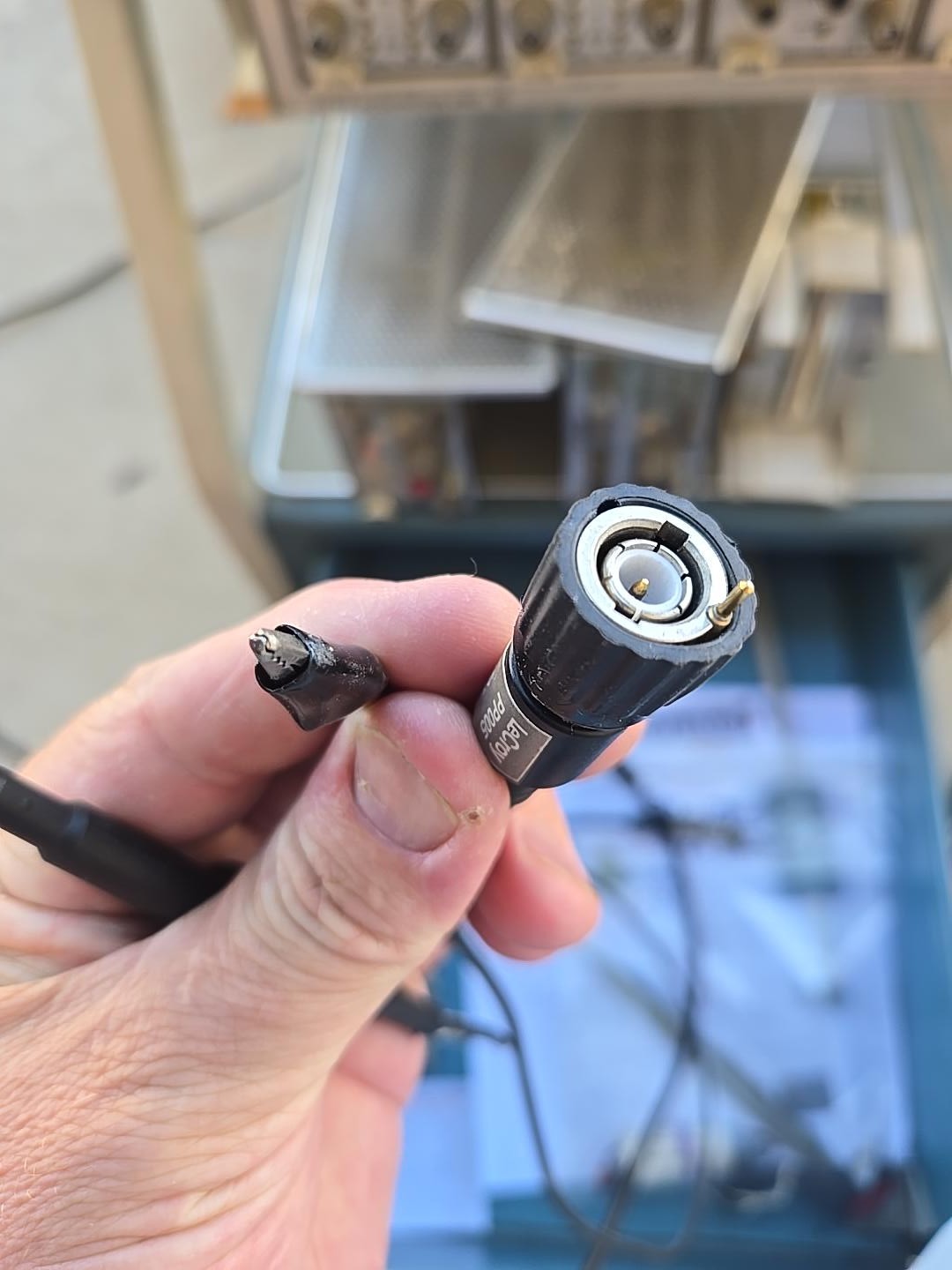

Probe/leads, paperwork/data sheets and miscellaneous Tektronix accessories shown in photos

Testing performed

The unit has been powered on and basic operation has been verified.

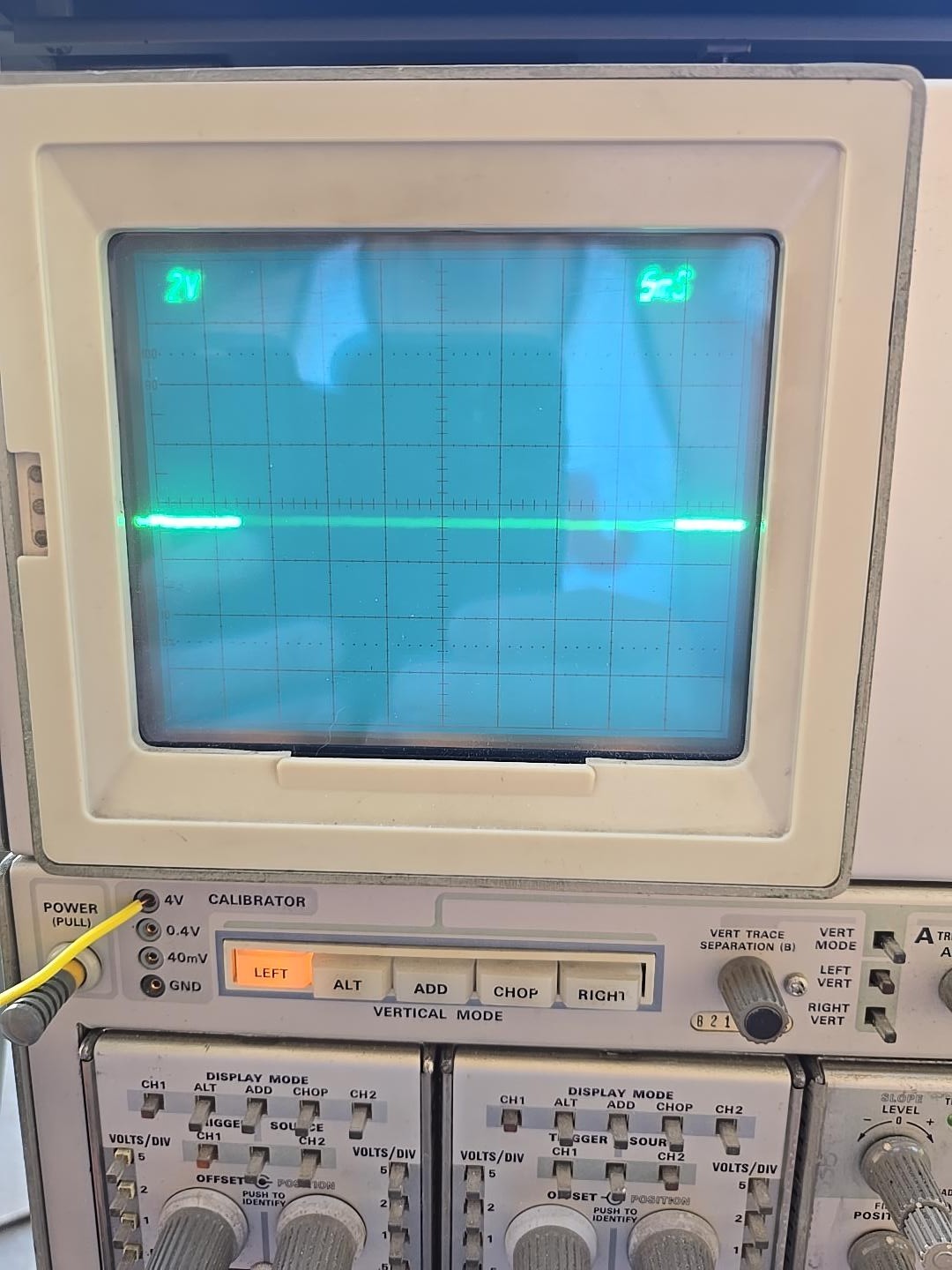

The CRT illuminates and produces a clear visible horizontal trace. The trace was centered and adjusted using the front controls. CRT readout is functioning, graticule illumination works, Beam Finder responds, and the installed plug-ins power up with indicator activity.

This has NOT been fully bench-tested or calibrated. I have not verified every input, channel, time-base function, bandwidth specification or calibration accuracy. The internal calibrator/input signal path was not fully tested.

It is therefore being sold as partially tested vintage laboratory equipment, not as recently calibrated professional test equipment.

Cosmetically it shows normal age, workshop use, dust, marks and wear consistent with vintage laboratory equipment. Please review all photos closely.

This is a substantial, heavy setup and I am selling it complete as shown rather than shipping the entire system.

Local pickup in the Anaheim Hills / Orange County area.

Excellent piece for a vintage electronics collector, radio technician, restoration shop, Tektronix collector, electronics lab or retro test-equipment display.

CROSS LISTED THRU LOCAL SITES IN ORANGE COUNTY

Tektronix, Tek, oscilloscope, analog oscilloscope, 7704A, 7000 series, 7A12, 7B80, 7B85, time base, dual trace amplifier, ham radio, amateur radio, RF, electronics test equipment, vintage laboratory equipment

Hit that Heart and add my store for future visits! Always adding new and cool finds! Clothing, golf gear, Big N Tall, vintage stuff.

Antiques, Art, and much more. Thanks again for visiting

Brand	Tektronix
Oscilloscope Type	Analog Oscilloscope
Model	7704A
MPN	7704A

Vtg Tektronix 7704A Oscilloscope System 2x 7A12 7B85 7B80 Scope Cart W Extras

Specifications
