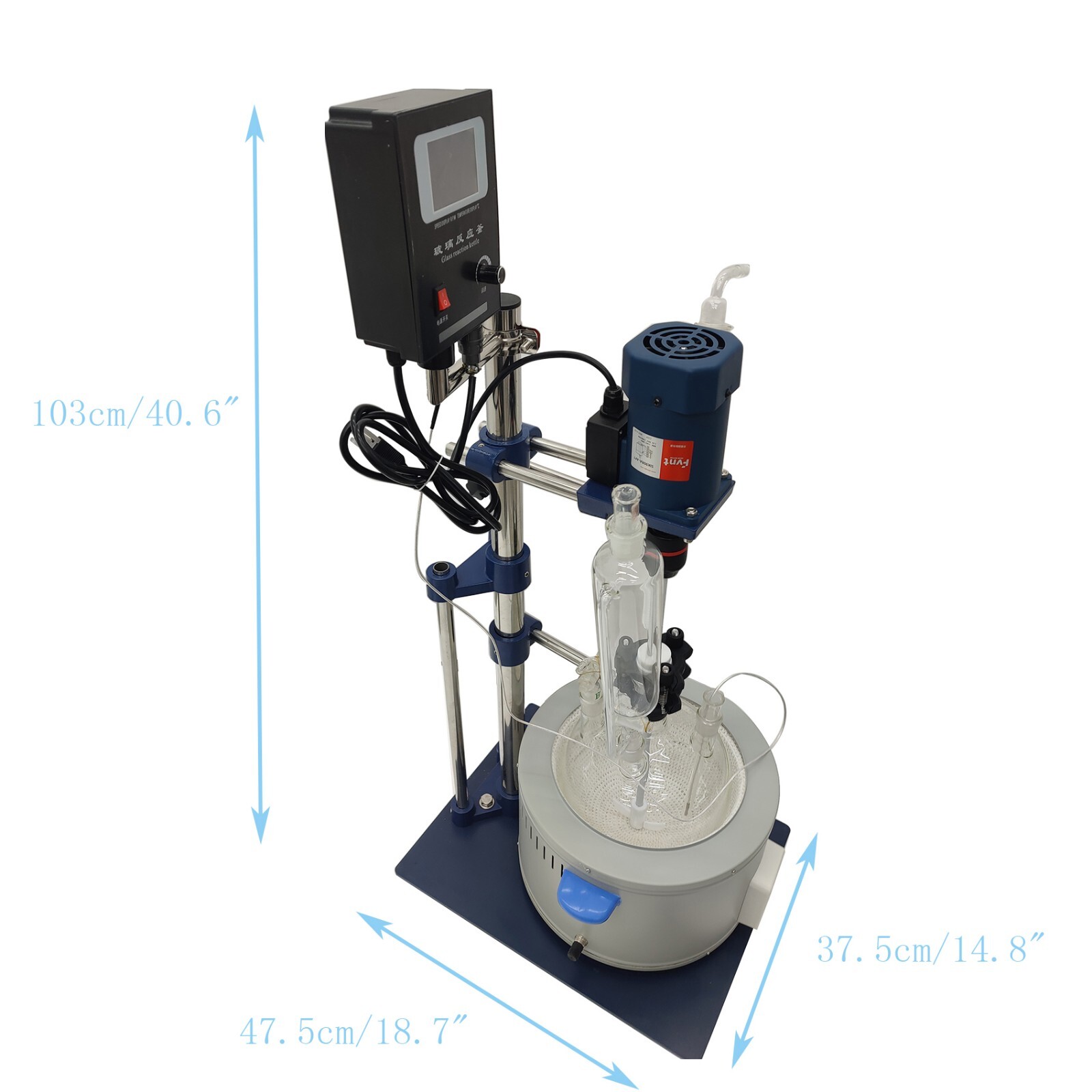

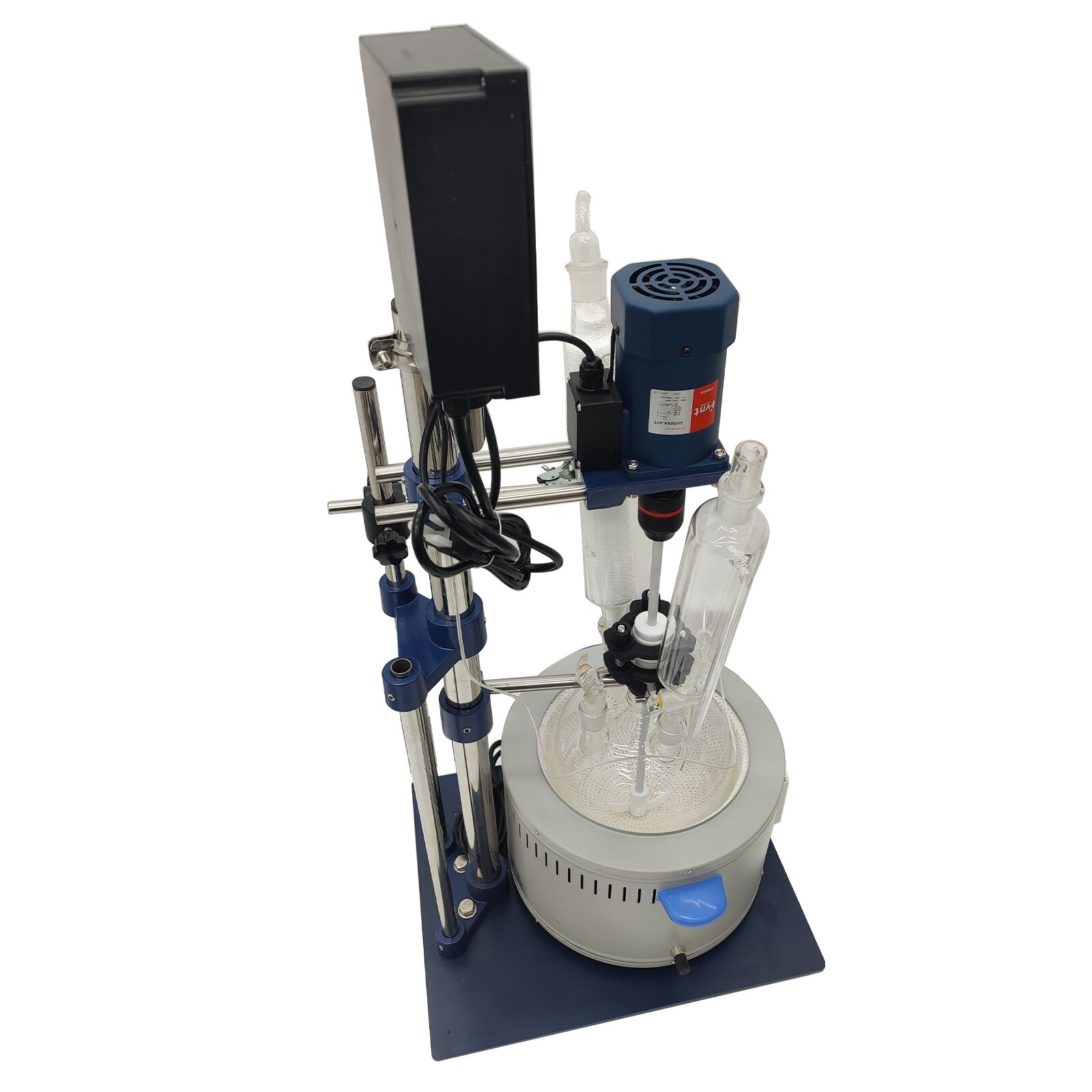

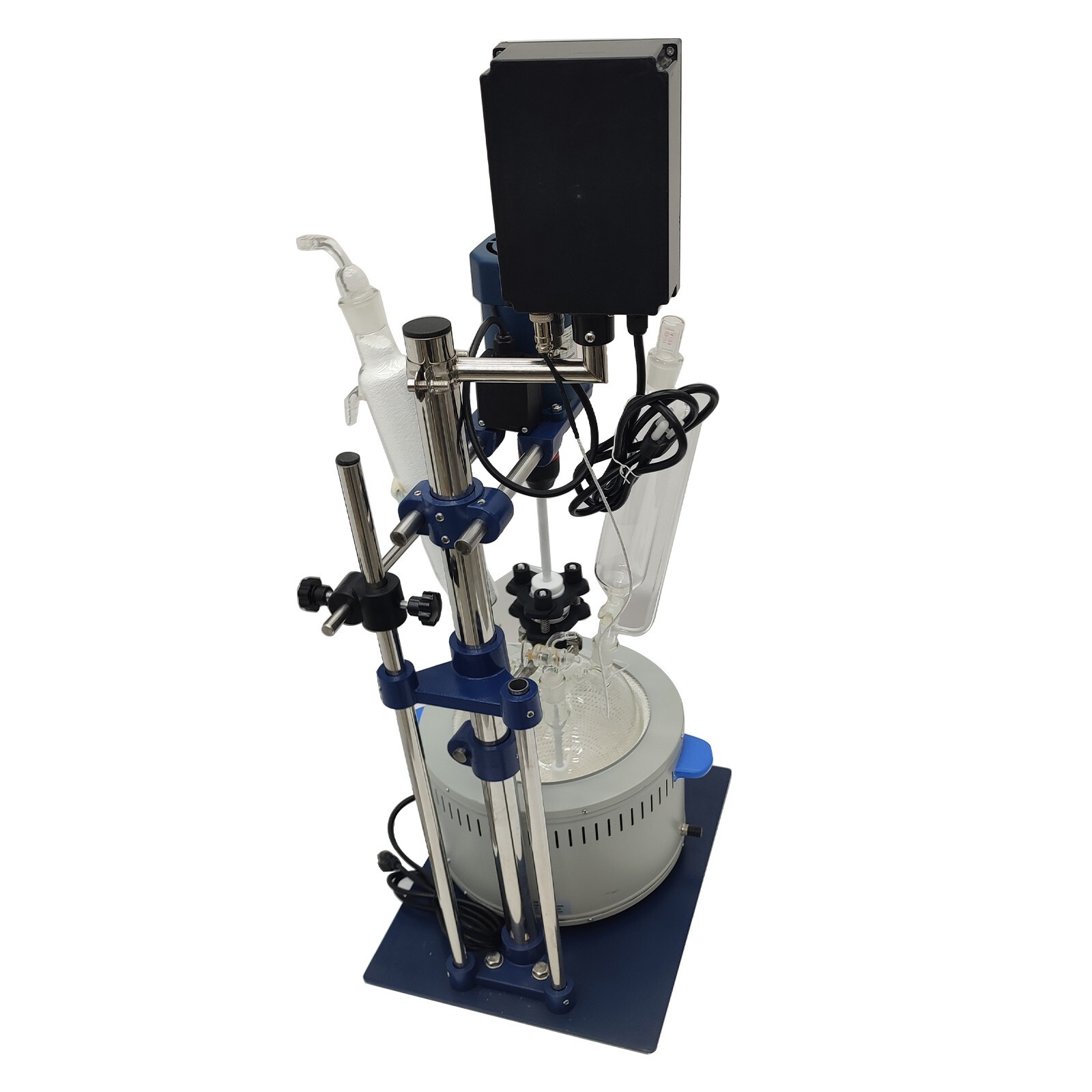

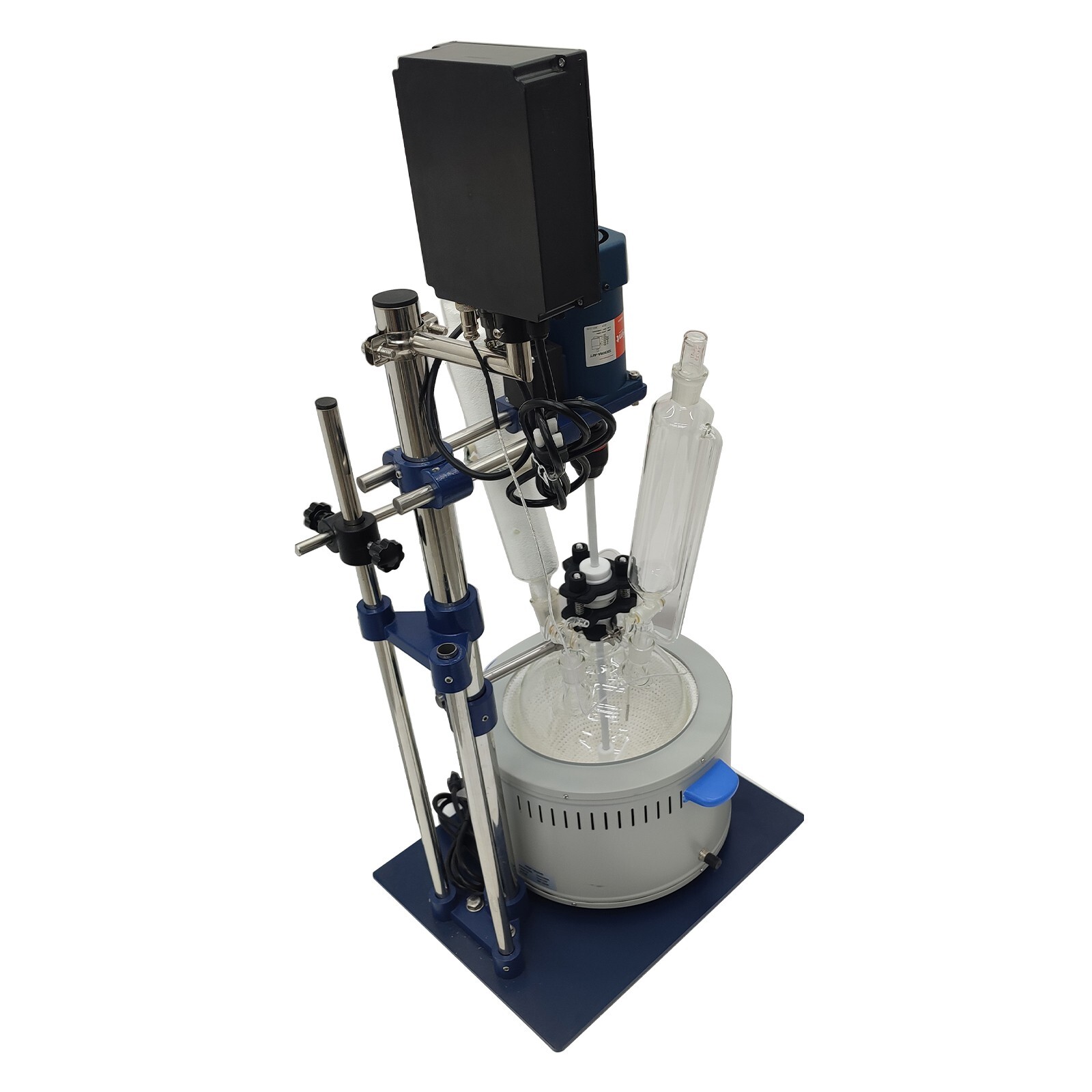

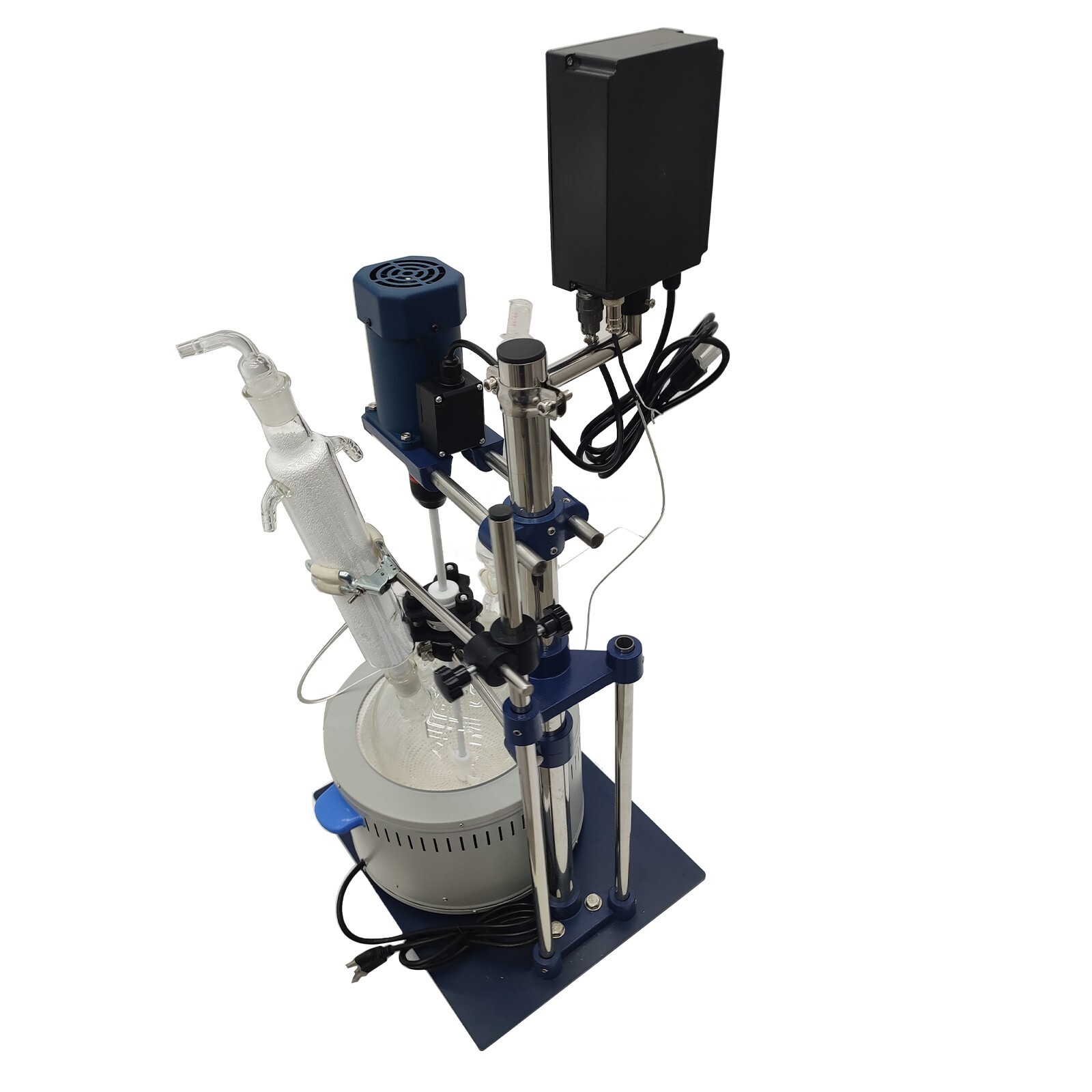

5L Single Layer Jacketed Glass Reactor Lab Chemical Reaction Vessel Equip 110V

Glass reactor is single-layer glass design, can do stirring reaction. Under the set constant temperature conditions, in the closed glass reactor, it can be stirred under atmospheric or negative pressure conditions according to the use requirements, and can do the reflux and distillation of the reaction solution, which is an ideal pilot test and production equipment for modern fine chemical industry, biopharmaceutical and new material synthesis.

Technical parameter

1. High quality high borosilicate (GG-17) material, vertical rod and fixed frame for high quality 304 stainless steel material, with the advantages of corrosion resistance, rust resistance, resistance to various solvents.

2. Type: single layer spherical

3. Capacity: 5L

4. Motor power: 90W

5. Speed: electronic speed regulation 0-600 RPM

6. Power supply: 110V

7. The reactor can withstand temperature and working pressure: withstand temperature: -120℃----300℃ (the temperature can be digitally displayed on the controller) Withstand temperature difference: +/-40℃, withstand working pressure: normal pressure and negative pressure (-0.1MPa) The reactor is equipped with a solid feeding port, the bottom stirring without dead Angle, no liquid accumulation.

8.Electric heating sleeve technical parameters

Power supply: 110V

Capacity: 5000ml

Power rate: 1100W

Temperature control accuracy: ±1℃,

Temperature control mode: intelligent digital display, thyristor control, internal and external sensor temperature measurement

Heating temperature: maximum surface temperature 380℃

Boiling: 50ml water 10-25 minutes

Furnace wire: Cr20Ni80

Extreme edge layer: no alkali glass fiber, can withstand temperature 450 degrees

Insulation factor: Dry ≥500 megabytes

Thermal insulation layer: exclusive use of aluminum silicate cotton vacuum filter type environmental insulation body

Safety tube: 5×20 15A

Characteristics

1.PTFE material and special rubber composite seal ring to seal, can withstand a variety of different solvents and maintain a high vacuum easy to use.

2.High efficiency condenser, ensure high recovery rate.

3.Standardized connection, easy to disassemble.

4.Constant pressure drops add funnel, and the main reactor pressure balance visible drop acceleration rate.

5.The vertical rod and fixed frame are 304 stainless steel and aluminum alloy material, with the advantages of corrosion resistance, rust prevention, solvent resistance.

7.The glass parts are made of GG-17 high temperature resistant borosilicate glass material, with good physical and chemical properties.

8. Electric heating sleeve heating, intelligent constant temperature, clean health, no loss.

9.Stepless speed regulation, no spark motor, safe and reliable.

Attention：
1, before use, carefully check the instrument, whether the glass bottle is damaged, whether the interface is consistent, and pay attention to handling gently.
2, wipe each interface with soft cloth (can be replaced by a napkin), and then apply a little vacuum grease. (The vacuum grease must be applied after use to prevent ash sand from entering.)
3, the interface cannot be screwed too tightly. Be sure to regularly loosen the flexible part to avoid long-term lock caused by the connector bite.
4, first turn on the power switch, and then let the machine run from slow to fast, stop the machine, and then turn off the switch.
5, the PTFE switch everywhere cannot be excessively tightened so as not to damage the glass.
6, after each use, the user must wipe all kinds of oil stains, stains and solvents remaining on the surface of the machine with soft cloth, and keep the machine clean.
7, after the shutdown, loosen the PTFE switch, otherwise long-term static in the working state will cause the PTFE piston deformation.
8, regularly clean the sealing ring, the method is: remove the sealing ring, check whether there is dirt on the shaft, wipe it with soft cloth, then apply a little vacuum grease, reinstall it and keep the shaft and the sealing ring smooth.
9, the electrical part must not be watered, and is strictly prohibited from moisture.
Must purchase the original authentic parts, the use of other parts will cause fatal damage to the machine.
When making any repair or inspection of the machine, be sure to cut off the power and water first.
Note that this equipment is a fragile product, please handle it carefully when using, the damage of fragile products is not within the scope of our warranty, if the customer needs, we need to charge the corresponding cost.
　
Installation and Operation Method：
1. After opening the package, check whether the main accessories of the machine are complete according to the packing list.
2. Assemble the frame of the stainless steel pipe and fixed parts as shown in the attached drawing.
3. Install the electrical box on the top of the right rear vertical rod, tighten the screw, and plug the cable at the back end of the electric heating sleeve. Plug in the three-wire socket. The three-wire socket should be grounded. Set the temperature according to the heating requirements.
4. Start the motor, slowly adjust the governor knob, the motor stirring rod is running smoothly. If there is swing, it is necessary to readjust the concentricity of the motor shaft and the stirring rod. Adjust it accurately, and the stirring rod can work without swinging.
5. Turn on the electrical switch. After adjusting it to the appropriate temperature, the reaction test can be carried out by heating. After the reaction test is completed, turn off the power supply in time.
6. The stirring rod is fixed on the clamp of the motor spindle, and the stirring rod passes through the middle of the cover to rotate the bearing. Tighten the special connector, and then adjust the position of the motor. Pay attention to the vertical concentricity.
7. The slider on the vertical bar is a stainless steel multi-purpose clamp that is fixed and adjusted in different directions and heights.
8. The installation of glass instruments must be clean, and the interface is coated with Vaseline to prevent the phenomenon of glass holding, and then coated with vacuum grease to prevent air leakage.
9. After the fixed device is installed, stirring begins. If the stirring is stable, it indicates that the debugging has been completed.
