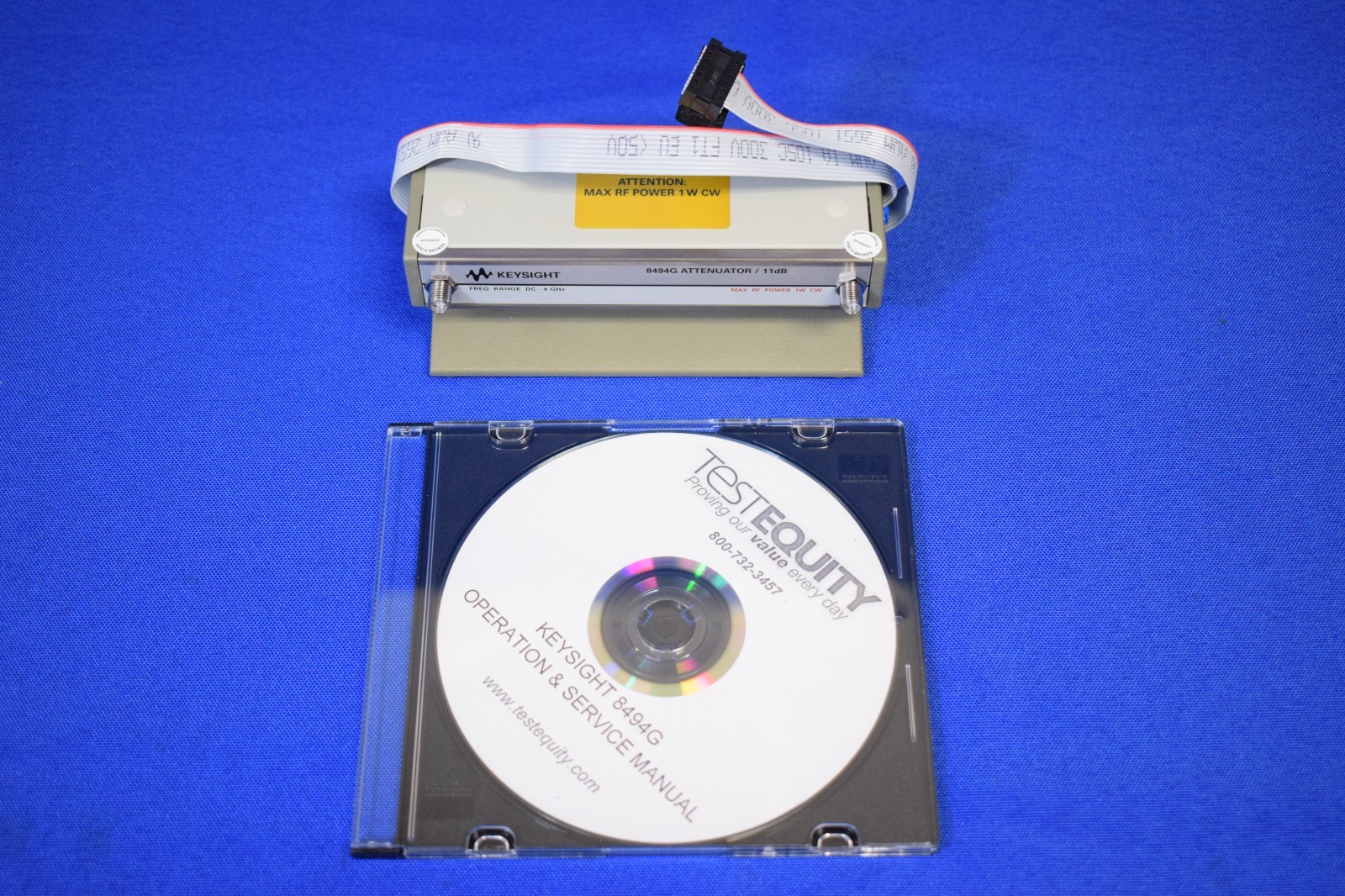

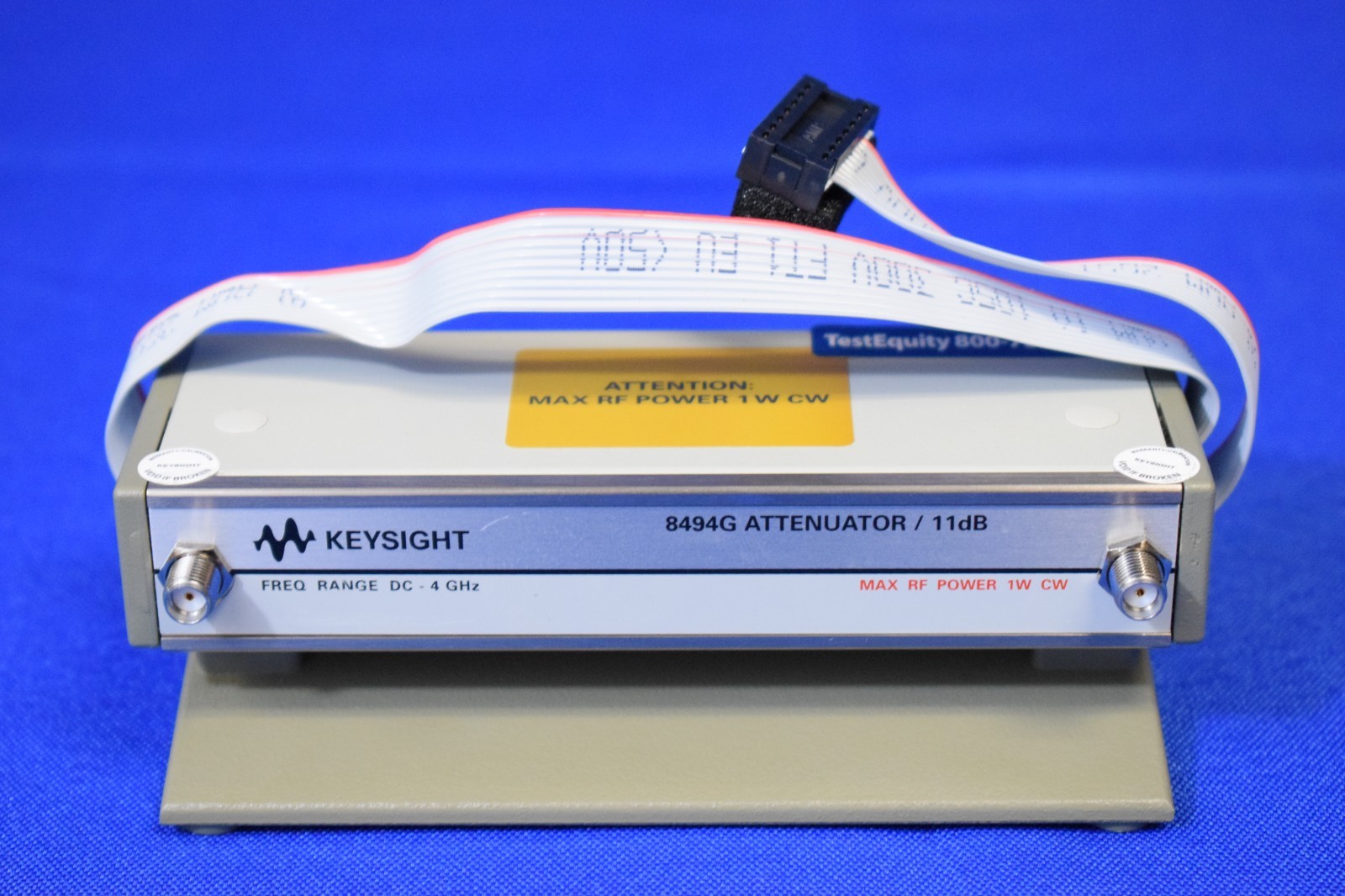

Keysight 8494G

Programmable Step Attenuator, DC to 4 GHz, 0 to 11 dB, 1 dB steps

Serial No: MY52301484

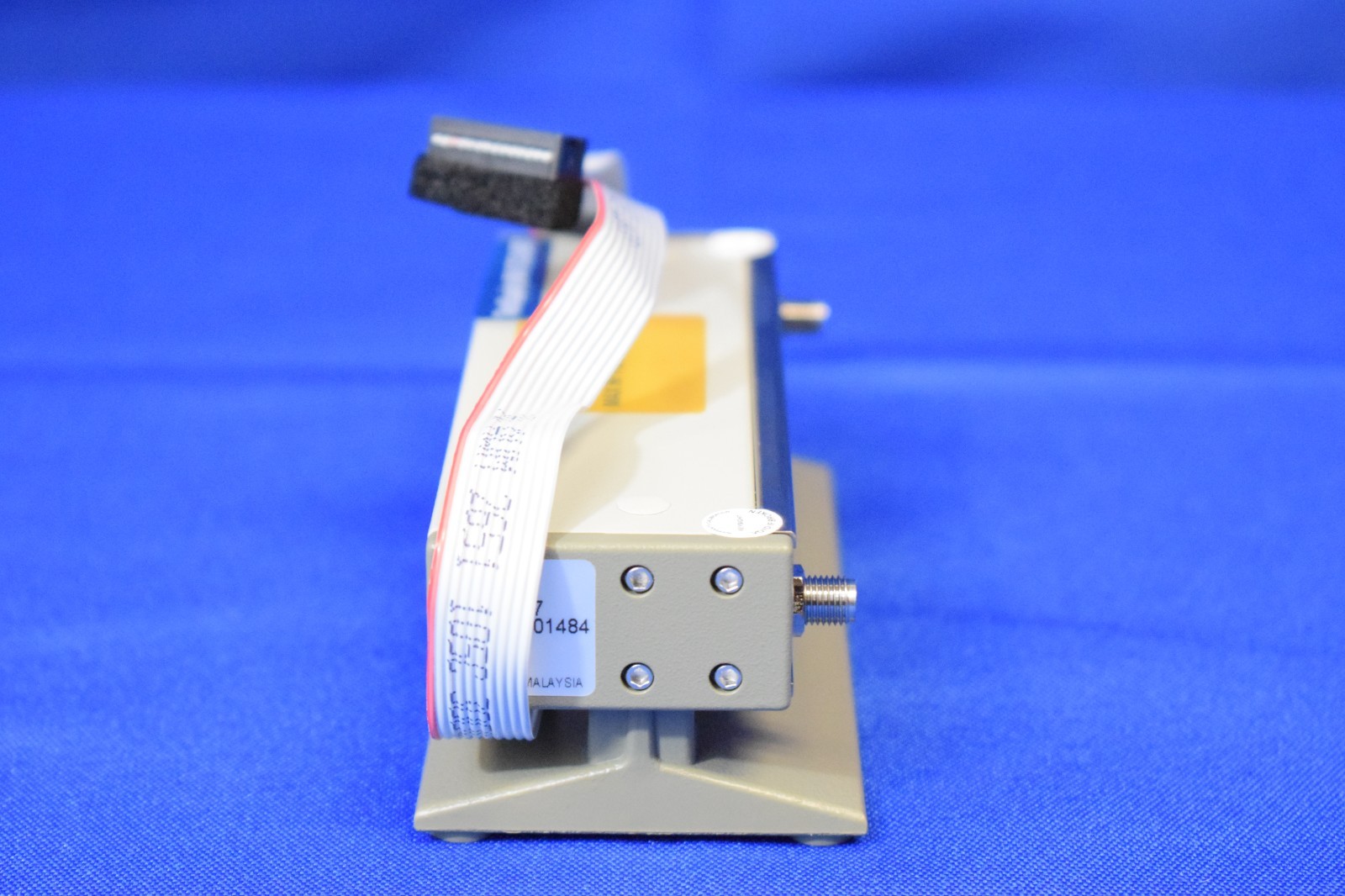

Unit is in good working order/condition. Please see pictures.

Options Installed:

002 - SMA female connectors
060 - Viking to bare wire cable

Manufacturer Description:

The Agilent 8494G dc to 4 GHz programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long-life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

Superior RF Performance

Frequency range: dc to 4 GHz
Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
Maximum SWR: 1.5

Repeatability and Life Span

Repeatability life: 0.03 dB max 5 million cycles per section, typical
5 million cycles per section

Power Handling

Maximum RF input power: 1 W (average), 100 W (peak)

Features

Connector type: choice of Type-N female, SMA female, APC-7
Programming connector: 12-pin Viking, optional 14-pin DIP

All orders shipped in Instapak Foam-Fitted packaging material.

TestEquity, LLC
1935 Plaza Real Oceanside, CA 92056

Brand	Keysight
Frequency Range	4GHz
Attenuation Range	0 to 11 dB
MPN	8494G

Keysight 8494G /002/060 Programmable Step Attenuator DC 4GHz 11dB 1dB Steps
