Thermo Fisher Niton XL5 Plus Handheld XRF Analyzer

Condition and overview

Used Thermo Fisher Niton XL5 Plus portable XRF analyzer in excellent condition, with minor signs of prior use. It has been tested and is in working order. Includes a 60-day warranty and the accessories listed below.

The XL5 Plus is a compact handheld analyzer designed to identify and verify alloys and metals. Its 5 W X-ray tube and large-area drift detector support analysis of light elements as well as heavier metals. This unit is configured for both alloy and mining applications, with a Mining profile and LowSi profile installed. It also includes XL5, DIN, and GB alloy libraries.

The analyzer has a six-position filter wheel, a tilting color touchscreen, directional keys, and calibration modes for applications including general metals, precious metals, coatings, mining, soils, electronic alloys, and spectral fingerprint analysis.

Key features

5 W X-ray tube
Large-area drift detector for light-element detection, including Mg, Al, Si, P, and S
Lightweight design: approximately 2.8 lb (1.3 kg) with battery
Miniaturized nose
IP54 splash- and dust-protection rating
Wi-Fi connectivity
Integrated macro and micro cameras
Hot-swappable battery
Tilting color touchscreen and directional controls
Six-position filter wheel
Installed Mining and LowSi profiles

Analytical elements

The analyzer supports the following elements:


Ag	Cd	Mg	Re	Ti
Al	Cl	Mn	S	U
As	Co	Mo	Sb	V
Au	Cr	Nb	Se	W
Ba	Cu	Ni	Si	Y
Bal	Fe	P	Sn	Zn
Bi	Hf	Pb	Sr	Zr
Bk	Hg	Pd	Ta
Ca	K	Rb	Th

Specifications

Specification	Details
Weight	2.8 lb (1.3 kg) with battery
Dimensions	9.54 × 8.19 × 2.67 in (242.56 × 208.17 × 67.90 mm)
X-ray tube	Ag anode; 6–50 kV, 0–500 μA, 5 W maximum
Filter	Six-position filter wheel
Current	Dynamically adjustable
Detector	High-count-rate, high-resolution, extra-large-area silicon drift detector with 1 μm graphene window
Detector protection	ProGuard protection
Spot size	Standard 8 mm collimation; optional 3 mm small-spot collimation
Analytical range	Mg–U; Na detection by spectrum-based analysis
Calibration modes	General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Spectral Fingerprint, and TestAll™
Libraries	Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, and GB standards; user-editable libraries
System check	Built-in standardization and health check
Protection rating	IP54
Operating temperature	0°C to 50°C; external fan recommended above 33°C ambient temperature
Operating humidity	10% to 90% RH, non-condensing
Display	Tilting color resistive touchscreen
Power	12 V lithium-ion battery or 12 V DC, 3 A, 3.6 W power supply
Hot-swap battery	Allows battery replacement while maintaining analyzer operation
Cameras	Integrated CCD macro and micro cameras
GPS	Internal GPS; optional external GPS via Bluetooth
GPS data	Coordinates can be stored with sample information
Bluetooth	Supports printing, external GPS connectivity, and barcode readers
Internal memory	512 MB
Data storage	16 GB industrial-grade storage
Storage capacity	Approximately 130,000 readings with spectra; fewer when images are saved
Data entry	Touchscreen keyboard and customizable fields
Optional data entry	Wireless remote barcode reader
Data transfer	Wi-Fi and USB-C
Operating system	Linux
Support software	NitonConnect PC Software
Security	Password-protected user security

Included in the package

Thermo Fisher Niton XL5 Plus analyzer

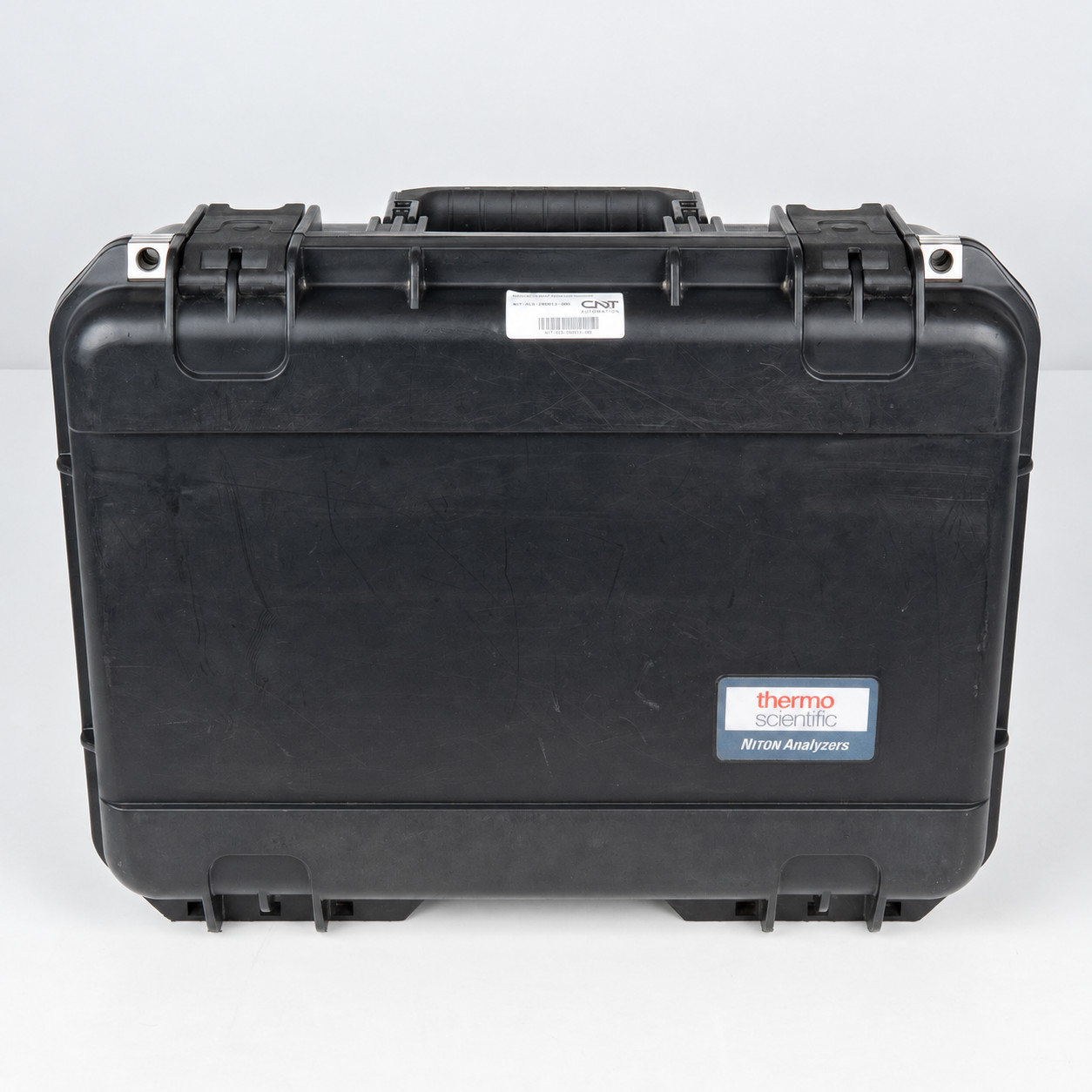

Thermo Fisher hard transport case
XRF thin-film soil kit set
QC standard
Battery charger and charging base
Stylus
Three universal adapters
Niton flash drive
Lock
Battery
Niton face plate
Prolene window pack
Three USB communication cables
Two XL5 batteries
X-ray Energy Reference Sheet
Niton XRF Analyzers Certificate of Analysis
Certificate of Manufacture and Calibration
X-ray Tube Radiation Survey Certificate
Niton XL5 Analyzer Setup Guide
Niton XL5/5 Plus Analyzer Radiation Safety Guide

Please review the photographs and package list to confirm the included accessories. Contact us with any questions. Thank you for your interest.
