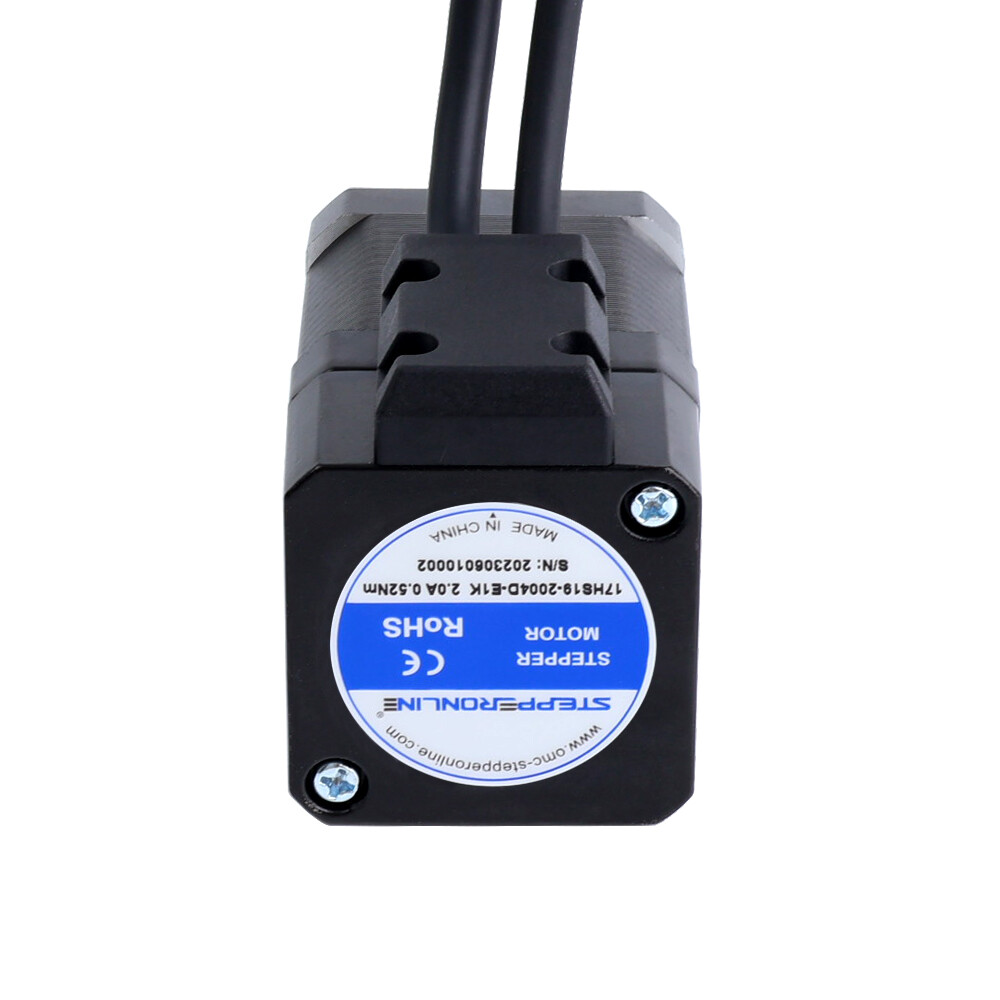

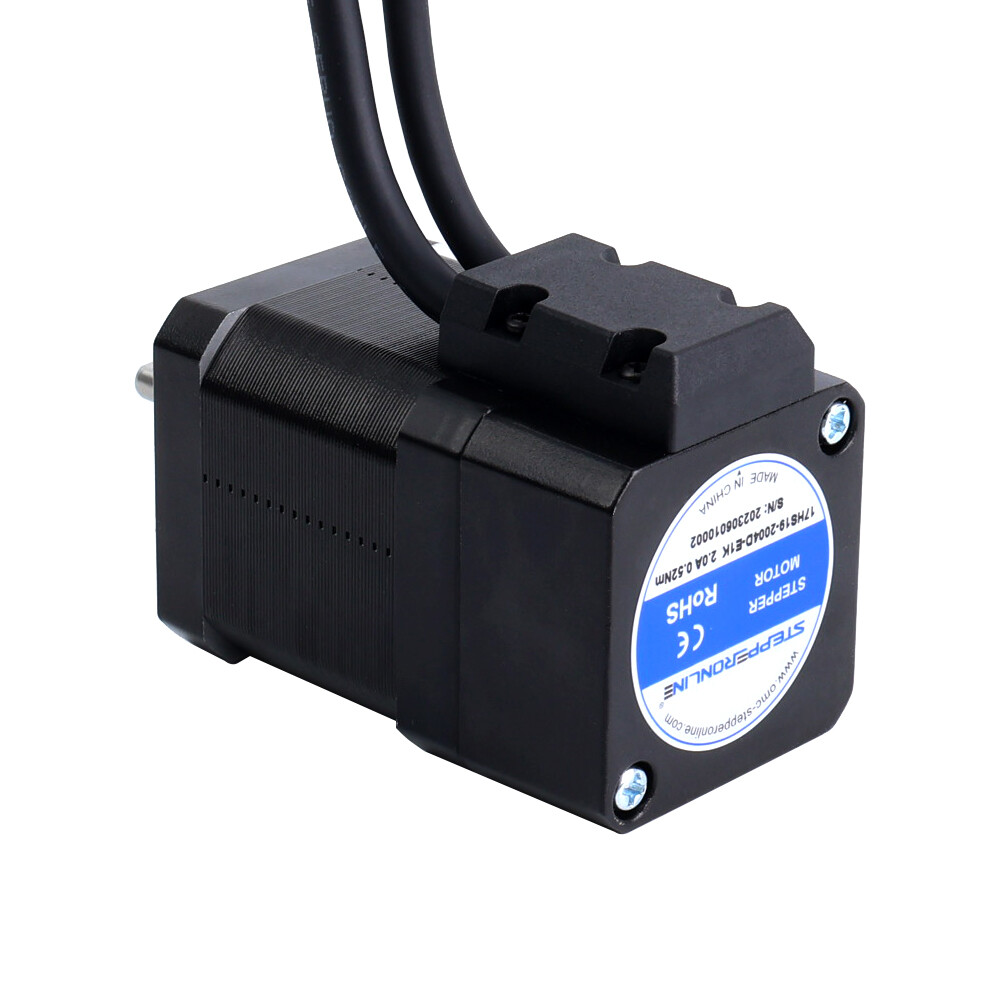

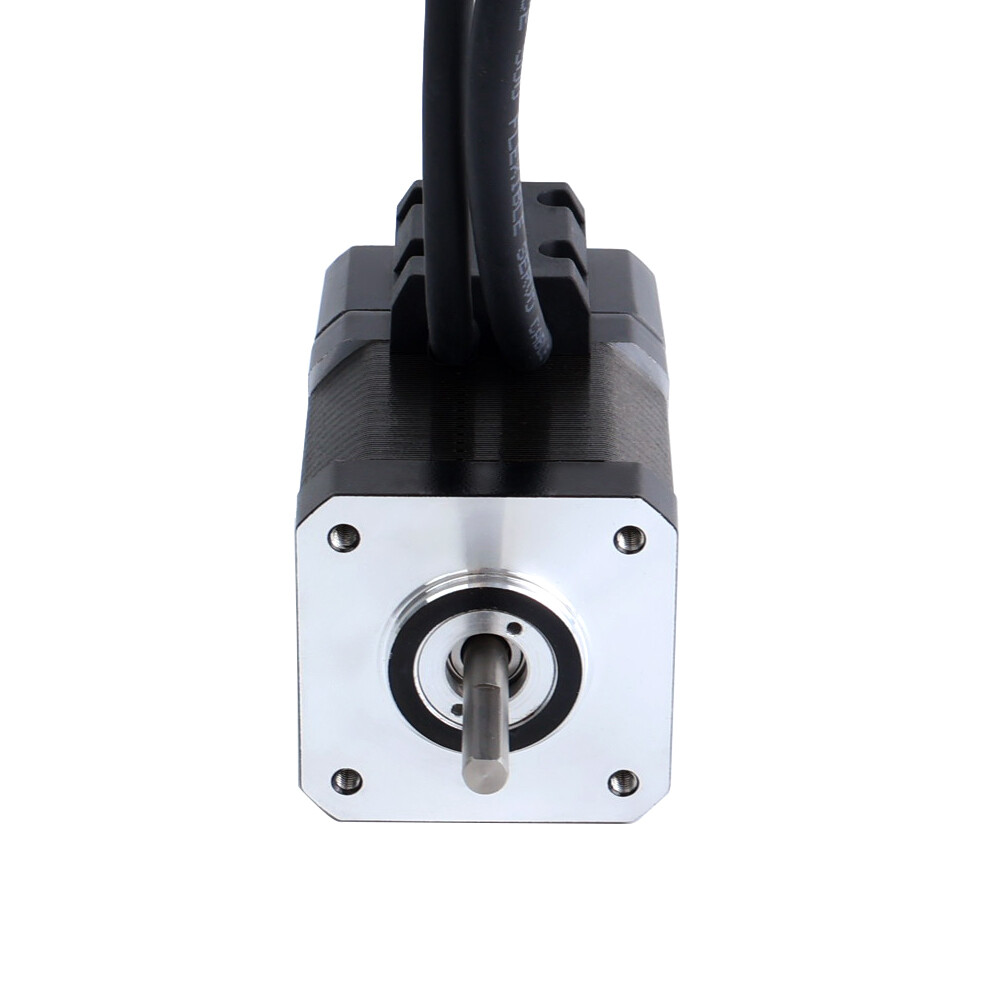

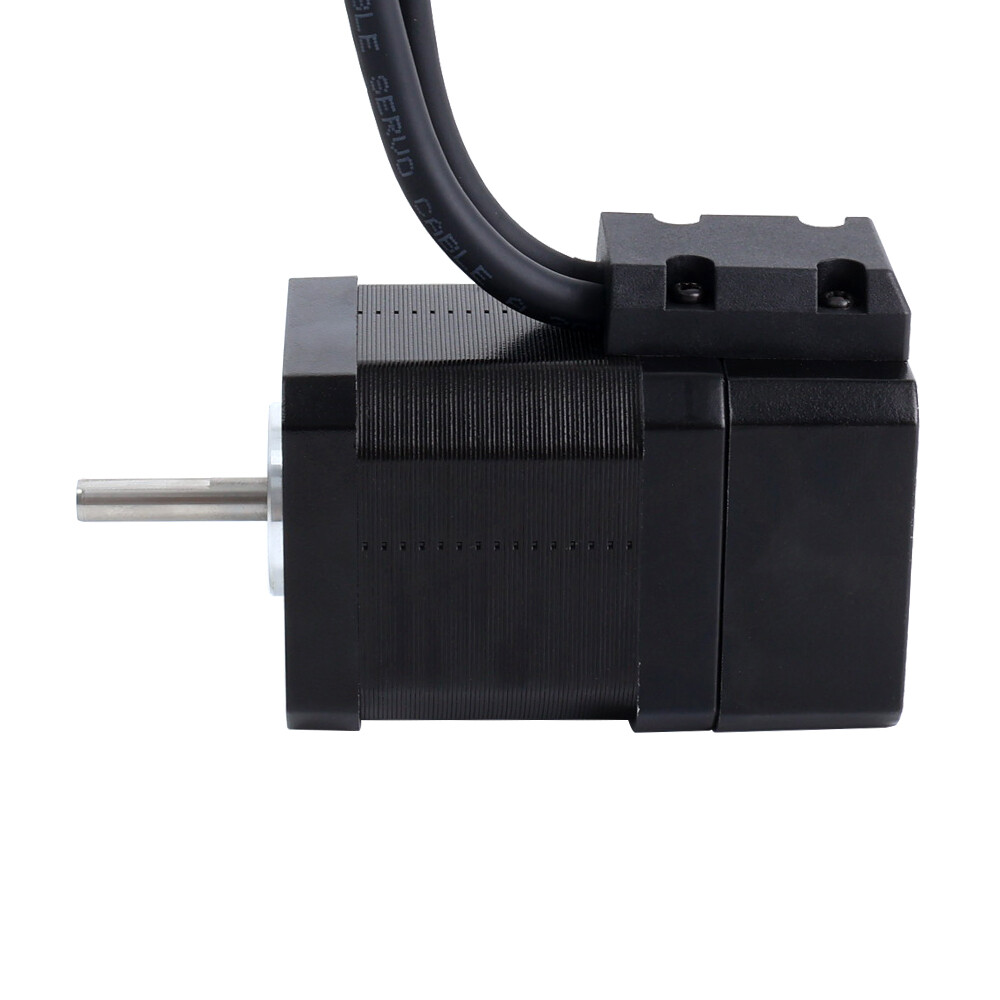

STEPPERONLINE Nema 17 Closed Loop Stepper Motor 74oz.in 1.8deg 2A w/ Encoder New
Thumbnail
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Business & Industrial|Industrial Automation & Motion Controls|Electric Motors|Stepper Motors

STEPPERONLINE Nema 17 Closed Loop Stepper Motor 74oz.in 1.8deg 2A w/ Encoder

USD $32.50
Seller: stepperonline
(13,984 reviews)
Perth Amboy, US
Only 6 left
US

Shipping

Standard Shipping
FREE
USPS Priority Mail
$30.00 USD
Request Quote
View on eBay

As an eBay Partner Network Affiliate, I earn from qualifying purchases.

Secure Transaction
Fast Response
Quality Guarantee

Specifications

Brand StepperOnline
Current Type DC
Nominal Rated Input Voltage 12 V, 24 V, 12-24VDC
Shaft Type D-Cut
Wiring Configuration 4-Wire Bipolar
Shaft Diameter 5mm
Full Step Angle 1.8° (200 Steps)
IP Rating IP40
MPN 17HS19-2004D-E1K
Actual Rated Input Voltage 12-24VDC
Holding Torque 52Ncm(73.64oz.in)
Insulation Class B (Max 266°F)
Rated Current per Phase 2.0A
Resistance per Phase 1.1ohms
Country of Origin China
Encoder Type Optical Incremental
Output Circuit Type Differential
Encoder Resolution 1000PPR
Output Signal Channels 2
