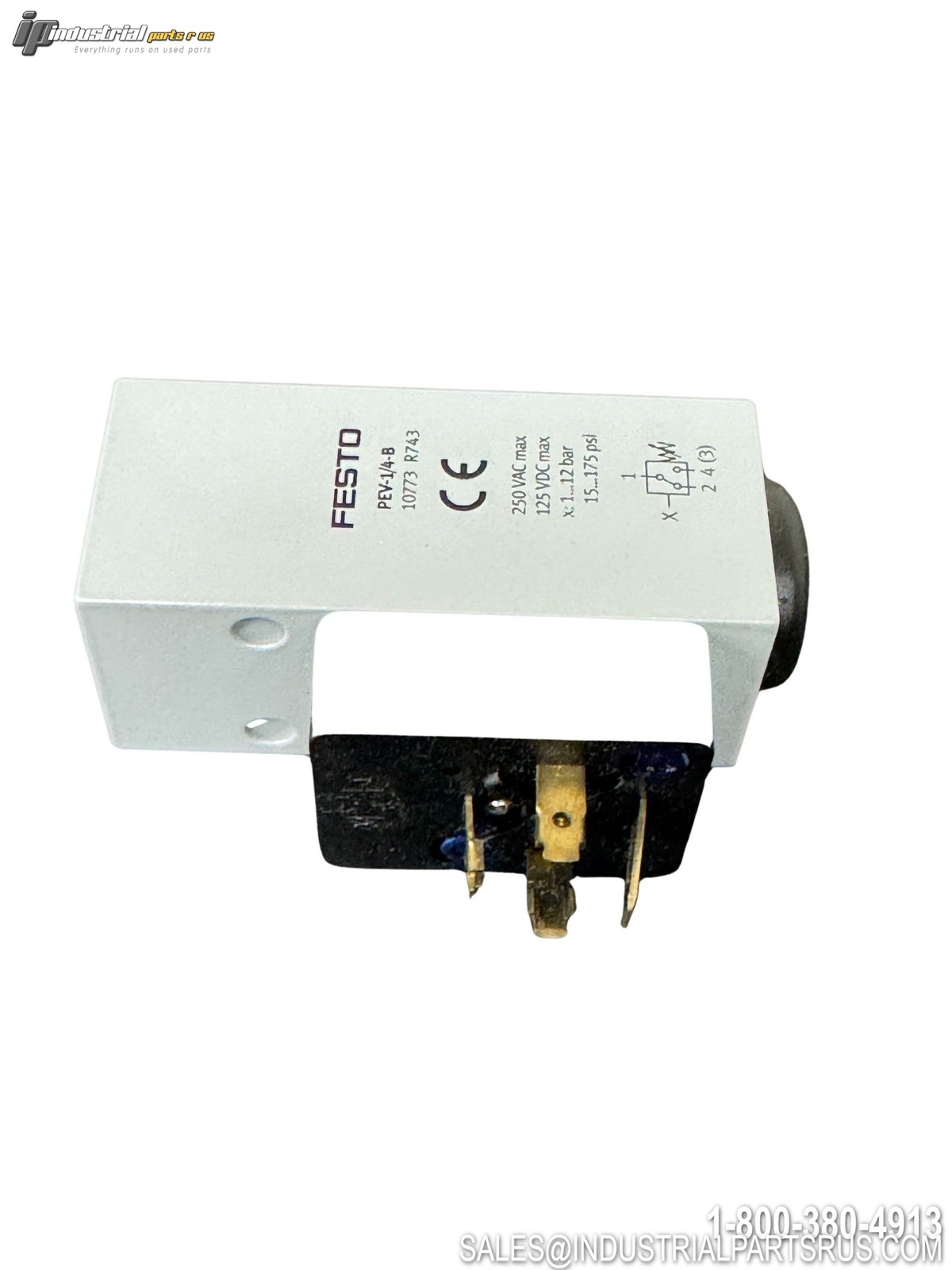

Festo PEV-1/4-B Pressure Switch G1/4 1-12 bar 250VAC IP65 PEV Series
USD
$85.00
Seller:
industrialpartsrusinc
100.0% positive
(7,218 reviews)
Bardstown, US
Only 3 left
US
Request Quote
View on eBay
As an eBay Partner Network Affiliate, I earn from qualifying purchases.
Secure Transaction
Fast Response
Quality Guarantee
Specifications
| Brand | Festo |
|---|---|
| Voltage | 250VDC |
| Shelf | P-6 |
| Series | PEV |
| Response Time | On: 1.5 ms; Off: 3 ms (typical at 6 bar) |
| Length | 56 mm |
| Height | 77.3 mm |
| Width | 30 mm |
| Part Number | PEV-1/4-B |
| Enclosure Type | IP65 |
| Max Pressure | 12 bar |
| Empty Weight | 194 g |
| Output Amperage | 5000 mA |
| Manufacturer | Festo |
| Current | 1 mA at 24V; 10 mA at 10V; 100 mA at 5V |
| Max Psi | 175 psi |
| Max Bar | 12 bar |
| Max Mpa | 1.2 MPa |
| Connection Size | G1/4 |
| Port Size | G1/4 |
| Dimensions | 56 mm L x 30 mm W x 77.3 mm H |
| Type | Pressure Sensor |
| MPN | PEV-1/4-B |
| Switching Frequency | 3 Hz max |
| Model | PEV-1/4-B |
| Output Type | SPDT Changeover |
| Actual Voltage Rating (AC) | 250 VAC |
| Actual Voltage Rating (DC) | 125 VDC |
| Termination Type | DIN 43650 |
| Body Material | Die-Cast Aluminium |
| Mounting Type | With Through-Hole, Any Position |
| Contact Material | Silver |
| approvals | CCC, CE (EU Low Voltage Directive), UKCA, ATEX Zone 1/2/21/22 |
| hysteresis | Adjustable (default 1.2 bar ± 0.3 bar) |
| rohscompliant | Yes |
| festopartnumber | 10773 |
| operatingmedium | Compressed air ISO 8573-1:2010 [7:-:-]; Water |
| reproducibility | ±3% at constant temperature |
| measuredvariable | Relative Pressure |
| mediatemperature | -20 to +80 °C |
| measurementmethod | Pneumatic/Electric Pressure Transducer |
| switchingfunction | Changeover Switch (SPDT) |
| Operating Pressure | 1-12 bar (0.1-1.2 MPa / 15-175 psi) |
| conformstostandard | EN 60947-5-1 |
