The Following Items Are Included:

Anritsu CMA5 5L35-SU SM Fiber Light Source (BC# 27288-L/T*)

SM Source:
- 1310nm
- 1550nm
FC Connector For Source
SC Connector For Source

(2) SM SC-FC Fiber Cables
(4) Fiber Wipes
Hard Copy User Manual
Strap For Unit
Carrying Case

BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS!

This Item Has A Current Calibration!

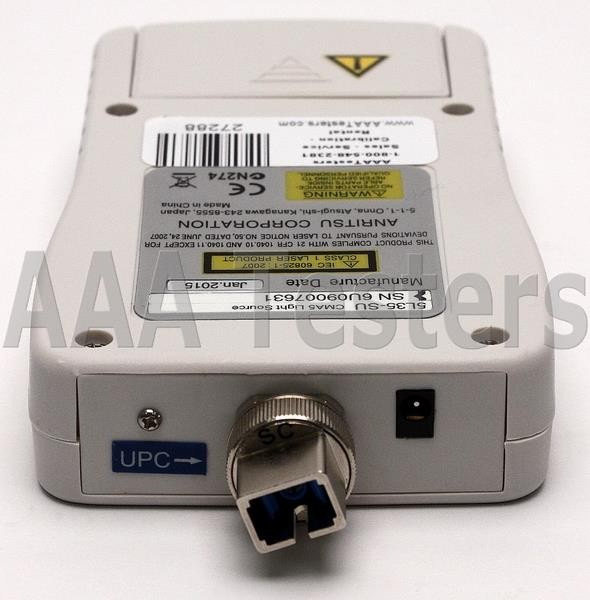

Anritsu CMA5 5L35-SU Singlemode 1310 / 1550nm Fiber Optic Laser Light Source

The CMA5 series are compact and lightweight, its excellent cost performance and simple operation with the required minimum number of functions make it ideal for onsite I&M.

Includes Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 Year Warranty

Anritsu CMA5 SM Fiber Source

The CMA5 series (Optical Loss Tester/Light Source/Optical Power Meter) measures optical loss and power for optical fiber I&M.

The CMA5 series are compact and lightweight, its excellent cost performance and simple operation with the required minimum number of functions make it ideal for onsite I&M. Service engineers can choose from three models — optical loss tester, optical source, and optical power meter — to match the onsite application.

specifications:

Model/Order No	5L35
Emitter Type	LD
Wavelength	1310/1550 ±20 nm
Output Power	–7 dBm (SM fiber)
Source Line Width (FWHM)	<5 nm
Modulation Output	CW, 270 Hz, 1 kHz, 2 kHz
Stability (8 hours)	±0.1 dB (25°C)
Connector Type	FC, ST, SC (User replaceable)
Battery Operation Time	16 h (9 V alkaline battery)
Input Power	9 V (9 V alkaline battery)
AC Adapter (Option)	Input: 100 V to 240 V, 50 Hz to 60 Hz, Output: 7.5 V
Operating Temperature Range	–10° to +50°C
Storage Temperature Range	–25° to +60°C
Relative Humidity	0 to 95% (no condensation)
Dimensions	75 (W) × 145 (H) × 25 (D) mm (excl. rubber cover)
Mass	250 g
Laser Safety	IEC 60825-1: 2007 CLASS 1 21CFR 1040.10 Excludes deviations caused by conformance to Laser Notice No. 50 dated June 24, 2007
EMC	EN61326-1, EN61000-3-2
