Keithley 2700 6.5 Digit Multimeter / Data Acquisition Switch System

The Keithley 2700 is a classic Integra-series integrated DMM, scanner and data logger mainframe with 2 module slots, supporting up to 80 differential scan channels with compatible 7700-series plug-in modules. Built-in 6.5-digit precision DMM engine, supports DC/AC voltage, DC/AC current, 2/4-wire resistance, frequency, period and temperature measurement (TC, RTD, thermistor). It features open lead detection, battery-backed scan memory and channel monitoring. Interfaces: GPIB, RS-232, digital I/O trigger. Ideal for thermal cycling, environmental test, reliability screening and multi-point temperature logging.

Key Specifications

Resolution: 6.5 digit
2 slots for 7700 series modules, max 80 differential channels
Basic DCV accuracy: ±0.0025%
Temperature: Thermocouple, RTD, thermistor
Functions: DCV, ACV, DCI, ACI, 2/4-wire ohms, frequency, continuity
Interfaces: GPIB, RS-232, Digital I/O
Open lead detection, non-volatile scan memory
SCPI compatible

Disclaimer: No Return Due To Wrong Model Purchase

Long Formal Version

Keithley 2700 Integra Series Multimeter / Data Acquisition & Switch System

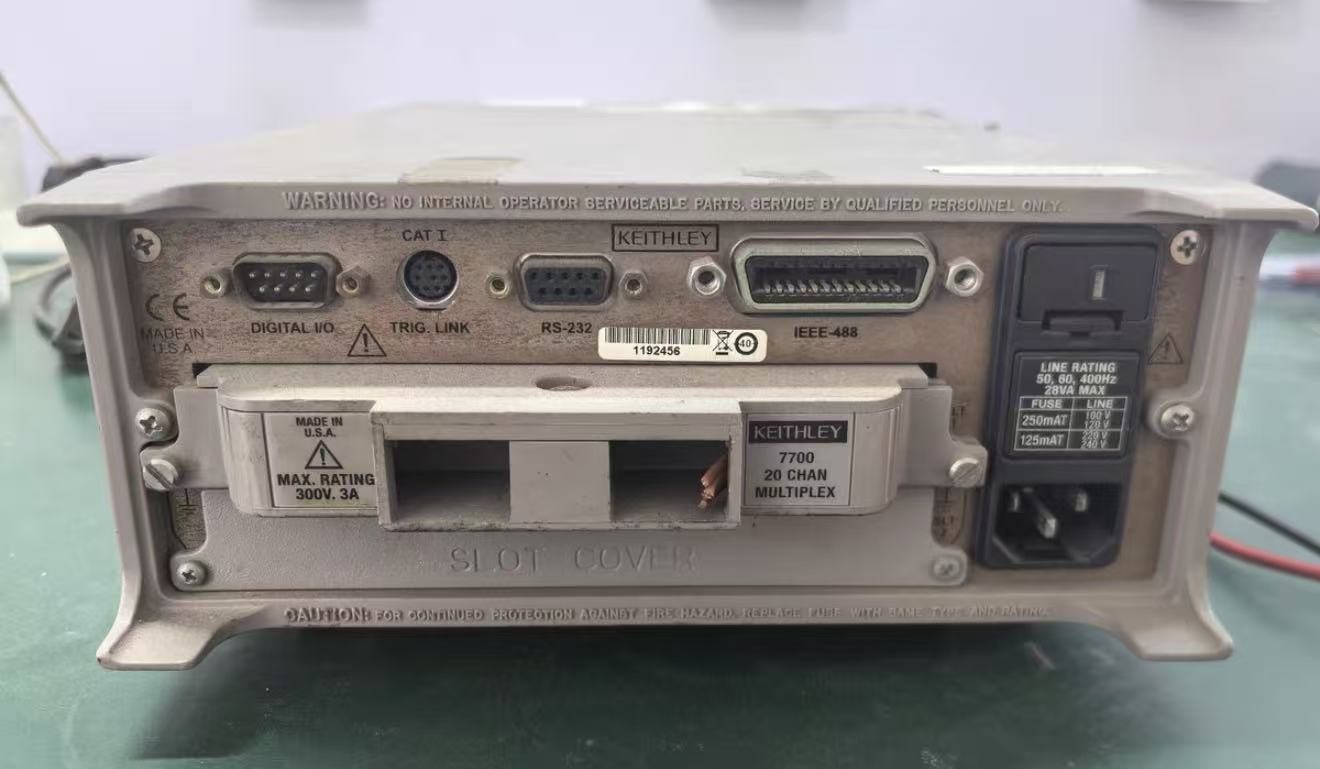

The Keithley 2700 is a popular compact half-rack data acquisition mainframe integrating a high-performance 6.5-digit digital multimeter, relay scanner and data logging function. It belongs to the classic Integra family and is widely used in lab and production multi-channel measurement. It has two rear slots for Keithley 7700-series plug-in modules, including multiplexers, matrix, high-speed and temperature modules. Fully configured, it supports up to 80 differential scanning channels. It supports 14 measurement functions: DCV, True-RMS ACV, DC/AC current, 2-wire and 4-wire resistance, frequency, period, diode, continuity, and temperature measurement for thermocouples, RTDs and thermistors.

Notable features include open-lead detection to avoid invalid readings from loose wiring, battery-backed non-volatile memory to resume scans after power interruption, and a channel monitor function that watches a selected channel without stopping the running scan. Standard communication ports are GPIB and RS-232, plus digital I/O for triggering and interlock. It follows SCPI command set, compatible with LabVIEW and Keithley software for automated test setup. Common applications: thermal cycling testing, HALT/HASS reliability test, battery testing, environmental chamber monitoring, component quality inspection and multi-point temperature survey.

Key Specifications

Measurement core: 6.5 digit DMM
Module slots: 2, compatible with 7700 series switch modules
Maximum channels: 80 differential channels
Basic DC voltage accuracy: ±0.0025%
Temperature measurement: TC, RTD, thermistor
Built-in open lead detection
Memory: Battery-backed non-volatile storage
Communication: GPIB, RS-232, Digital Trigger I/O
Programmable via SCPI commands

On Oct 27, 2026 at 03:58:04 PDT, seller added the following information:

KEITHLEY 2700 DIGITAL MULTIMETER / DATA ACQUISITION SYSTEM-82
