Aeroflex / Weinschel 68-40-34 High Power RF Fixed Attenuator

Offered for sale is a genuine Aeroflex / Weinschel Model 68-40-34, a professional-grade high-power fixed coaxial RF attenuator designed for demanding telecommunications, RF engineering, microwave testing, and laboratory applications.

Manufactured in the USA, this precision attenuator is engineered to provide reliable signal attenuation while safely dissipating high levels of RF power.

Technical Specifications

- Manufacturer: Aeroflex / Weinschel

- Model: 68-40-34

- Series: Weinschel Model 68

- Type: High Power Fixed Coaxial RF Attenuator

- Nominal Attenuation: 40 dB

- Frequency Range: DC to 4.0 GHz

- Maximum Rated Average Input Power: 100 Watts

- Nominal Impedance: 50 Ohms

- Connectors: Type N Female / Type N Male

- Attenuation Deviation: ±2.0 dB (Manufacturer Specification)

- Cooling: Passive, Convection-Cooled

- Construction: Heavy-duty finned metal housing

- Mounting: Integrated mounting holes

- Country of Manufacture: USA

- Manufacturer CAGE Code: 93459

- Serial Number: SF358

Professional Applications

Ideal for compatible:

- RF and Microwave Test Equipment

- Spectrum Analyzers

- RF Signal Generators

- Telecommunications Systems

- RF Power Testing

- Wireless Communication Equipment

- Laboratory Measurement Systems

- RF Amplifier Testing

- Antenna and Transmission Line Testing

- Industrial RF Engineering

High-Power Design

The Model 68 features a substantial finned metal housing designed for efficient passive heat dissipation.

Its 100-watt average power rating makes it suitable for professional high-power RF applications when operated within manufacturer specifications.

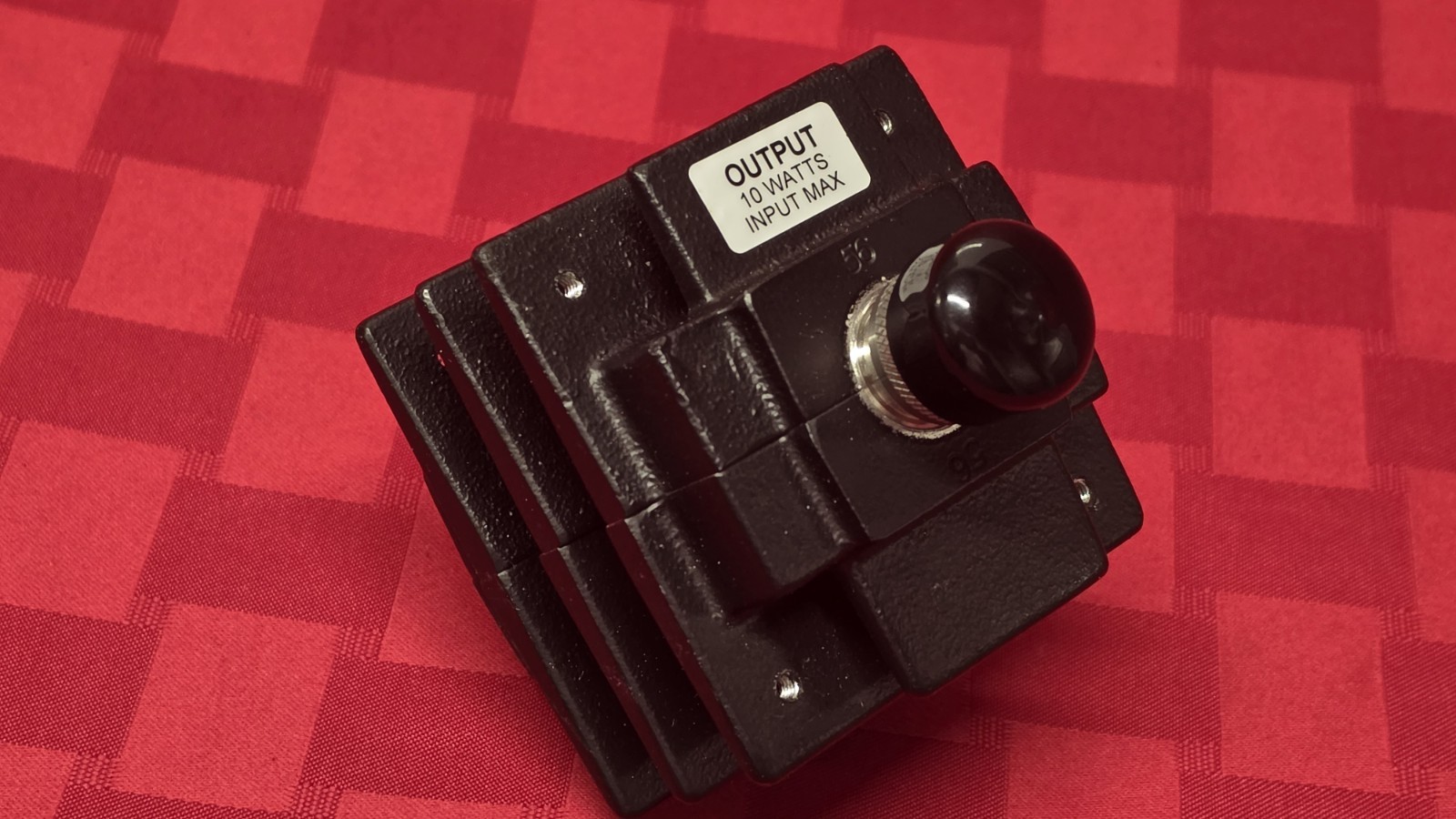

Important: The output port is marked "10 WATTS INPUT MAX." The device has a directional power limitation and must be connected according to the manufacturer's operating specifications.

The housing may become hot during high-power operation.

Condition

Excellent overall cosmetic condition.

The housing retains its original black finish, with only minor signs of handling or previous storage. The original manufacturer identification label is present and clearly legible.

The cooling fins, mounting points, and exterior components appear well preserved.

Please review all photographs carefully for the exact cosmetic condition.

Package Includes

- 1 × Genuine Aeroflex / Weinschel 68-40-34 High Power Fixed RF Attenuator

No additional accessories are included.

The photographs show the actual item you will receive.

Carefully packaged for secure shipping.

Thank you for your interest!

Brand	Aeroflex / Weinschel
Model	68-40-34
MPN	68-40-34
Country of Origin	United States

Aeroflex/Weinschel 68-40-34 100 Watt 40dB Attenuator

Specifications
