GENERAL

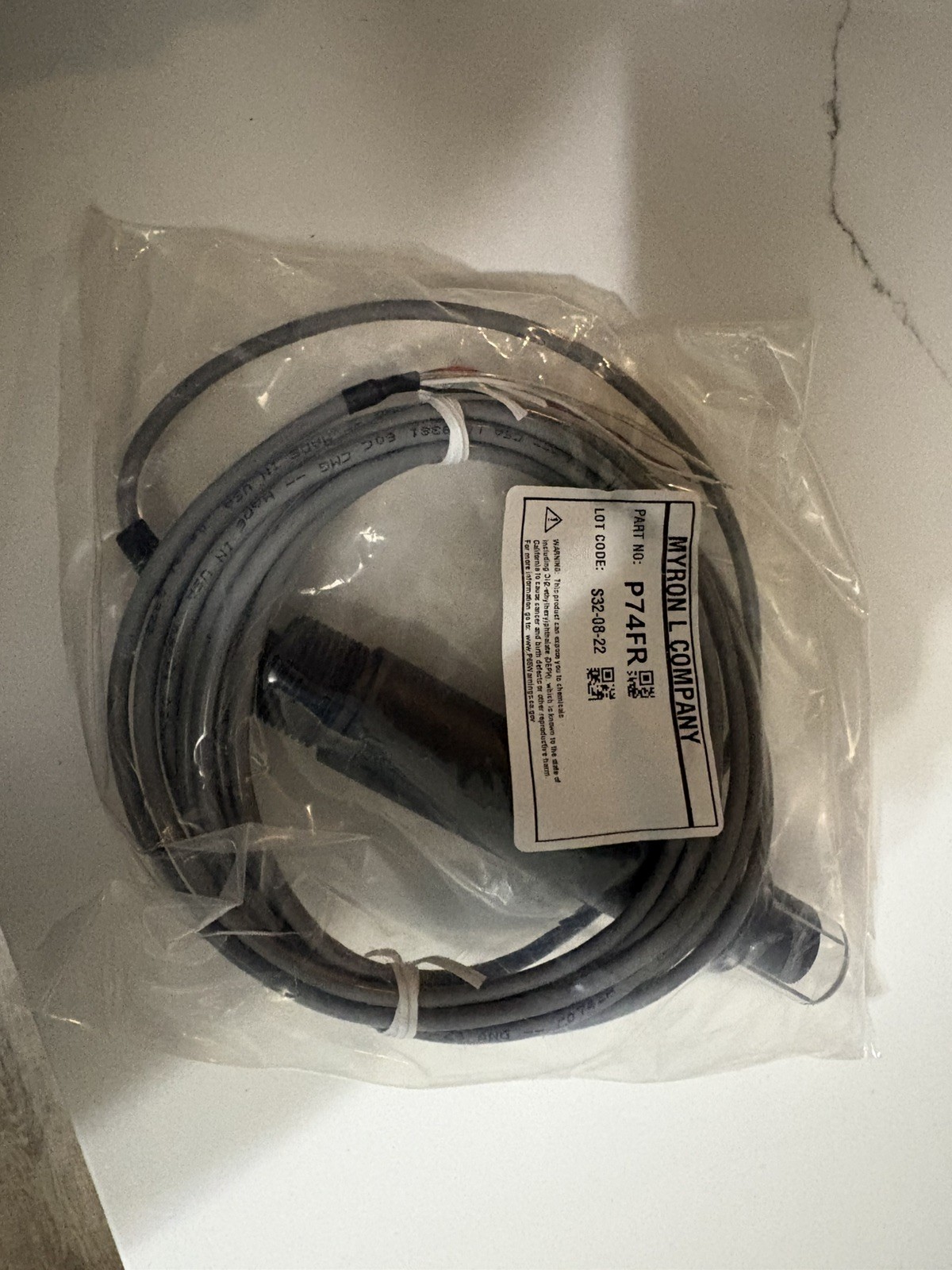

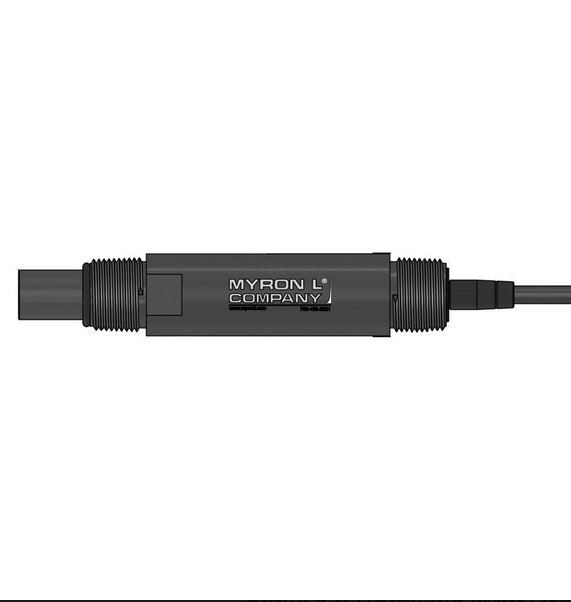

The Myron L P74FR is a heavy duty, flat tip combination pH/reference sensor with a 3/4 inch MNPT body. It works only with Myron L 720 Series II pH and ORP monitor/controllers. A built-in isolated preamplifier removes ground loop and noise problems. It also lets the sensor run longer distances from the monitor/controller without losing accuracy to cable capacitance, resistance or noise. The self-cleaning flat glass tip replaces a round bulb. It lasts longer in most abrasive or oily solutions, which suits demanding jobs like wastewater. The sensor can be installed in any direction, including inverted.

TYPICAL APPLICATIONS
- Wastewater
- Abrasive and/or oily solutions
- In-line or submersion installations

SPECIFICATIONS
- Compatibility: Myron L 720 Series II pH and ORP monitor/controllers
- Measurement range: 0-14 pH
- Offset (zero): 7.00 ±0.2 pH (±12 mV)
- Span: Better than 95% of theory
- Response time: Generally 95% in five seconds
- Sensor tip: Self-cleaning flat glass tip
- Reference junction: HDPE double junction with high temperature, chemical resistant acrylamide gel
- Signal conditioning: Built-in isolated preamplifier
- Temperature compensation: Built-in temperature sensor for automatic temperature compensation (can be disabled)
- Body material: Ryton polyphenylene sulfide (PPS)
- Connection: 3/4 inch MNPT, double ended
- Overall length: Approx. 7-9/16 inches (192 mm)
- Maximum temperature/pressure (continuous use): 212°F / 100°C at 50 psi (3.45 bar); 178°F / 81°C at 85 psi (5.86 bar); 169°F / 76°C at 100 psi (6.9 bar)
- Cable length: 10 feet / 3 meters
- Construction: Fully encapsulated and sealed
- Shelf life: 6 months
- Storage: Always keep in pH/ORP sensor storage solution when not in use; do not let the sensor dry out
- Origin: Made in USA
- Sold as: 1 sensor

Shipping Information

Weight:2 lb

Country of Origin:United States

HS Code:8421.99.0140

Brand	Myron L
Product	pH Sensor
MPN	P74FR
Country of Origin	United States
UPC	756806495617

Myron L P74FR pH Sensor, 3/4'' MNPT, Heavy Duty Flat Tip
