Fluke 435 Power Quality Analyzer meter helps you locate, predict, prevent and troubleshoot problems in power distribution systems. These easy-to-use power quality tools are a “must have” for any person who maintains or troubleshoots three phase power. The new IEC Class A standards for flicker and power quality are built right in to take the guess work out of power monitoring.

Troubleshoot real-time: Analyze the trends using the cursors and zoom tools-even while background recording continues
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
Automatic Transient Mode: Capture 200 kHz waveform data on all phases simultaneously up to 6 kV
Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
Measure all three phases and neutral: With included four current probes
AutoTrend: Every measurement you see is always automatically recorded, without any setup
System-Monitor: Up to ten power quality parameters on one screen according to EN50160 power quality standard
Inrush mode: For troubleshooting nuisance circuit breaker tripping
View graphs and generate reports: With included analysis software

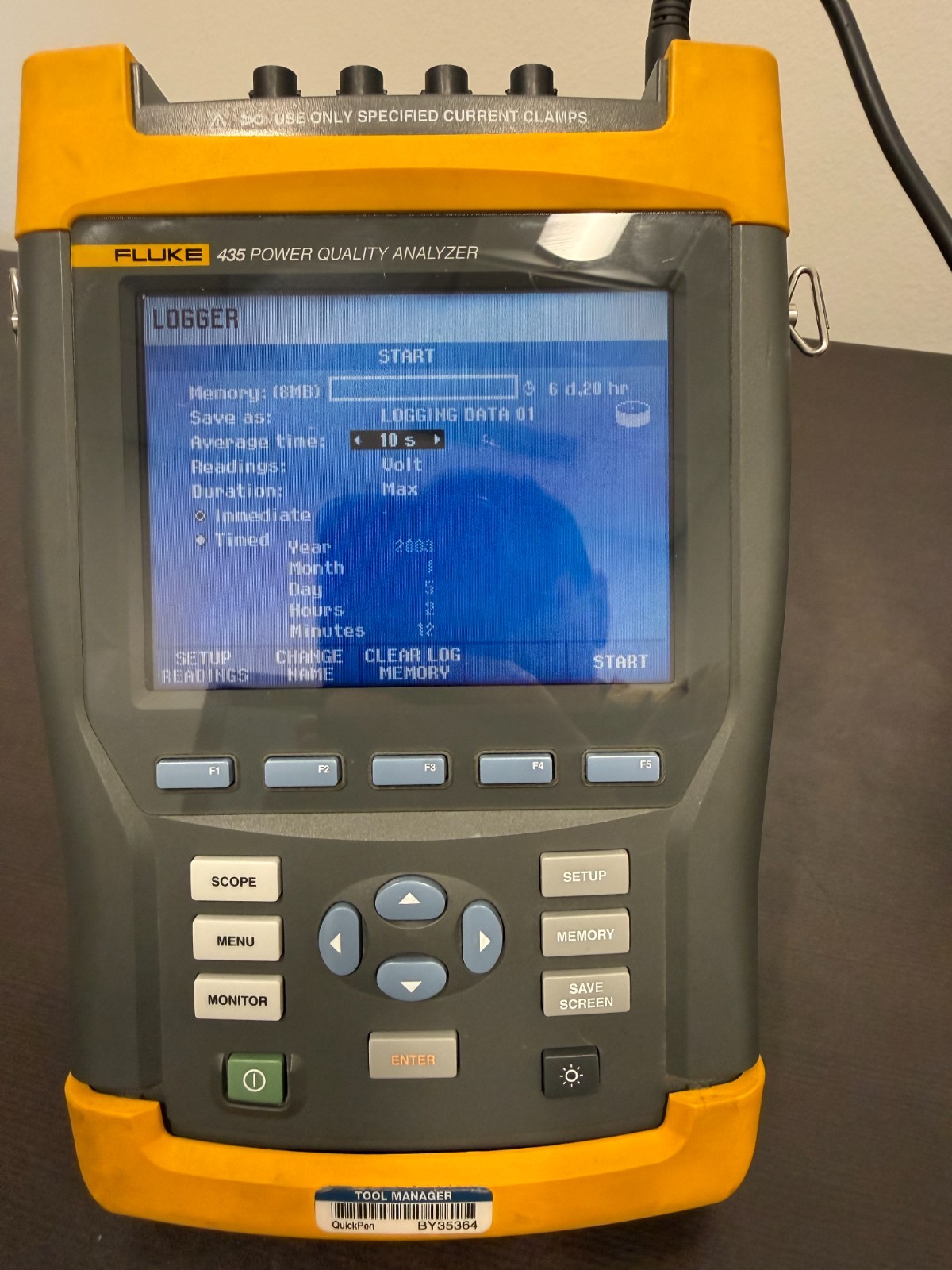

Logger function: Configure for any test condition with memory for over 400 parameters at user defined intervals
Mains signaling: Measure interference from ripple control signals at specific frequencies
Battery Life: Seven hours operating time per charge on NiMH battery pack

Applications

Frontline troubleshooting – quickly diagnose problems on-screen to get your operation back online
Predictive maintenance – detect and prevent power quality issues before they cause downtime
Quality of service compliance – validate incoming power quality at the service entrance
Long-term analysis – uncover hard-to-find or intermittent issues
Load studies – verify electrical system capacity before adding loads
Energy assessments – quantify energy consumption before and after improvements to justify energy saving devices

Features:

Complete three-phase troubleshooting tool: measures virtually every power system parameter: voltage, current, frequency, power, power consumption (energy), unbalance and flicker, harmonics and inter-harmonics. Captures events like dips and swells, transients, interruptions and rapid voltage changes.
The Fluke 435 features 0.1 percent voltage accuracy making it fully compliant with the IEC 61000-4-30 Class A standard
Logger function: record the detail you need. Detailed, user-configurable long-time recording gives you the MIN, MAX and AVG readings of up to 100 parameters on all 4 phases with selectable averaging time down to 0.5 seconds. Enough memory is available to record 400 parameters with 1 minute resolution for up to a month.
Four channels: simultaneously measures voltage and current on all three phases and neutral.
Auto Scaling: easier trend analysis with automatic scaling of the vertical axis you will always use the full display to view the waveforms.
Automatic transient display: captures up to 40 dips, swells, interruptions or transients automatically.
Meets the stringent 600 V CAT IV, 1000 V CAT III safety standard required for measurements at the service entrance.
Rugged, handheld instrument operates for more than 7 hours on included rechargeable NiMH battery pack. Menu-driven interface simplifies operation.
Extensive data analysis possibilities. Cursors and zoom can be used ‘live’ while taking the measurements, or ‘offline’ on stored measurement data. The stored measurements can also be transferred to a PC with FlukeView software.
The Fluke 435 comes with Power log software to analyze recorded data and to create reports.
Complies with IEC 61000-4-30 measurement standards

Power quality analyzer selection table

	435	434*
Measures voltage, current, dips, swells, interruptions, harmonics, inter-harmonics, flicker, power, energy, transients, frequency, unbalance, inrush, EN50160 overview	•	•
Logger function with multi-parameter logging	•	optional*
Mains signaling	•	optional*
Memory size	16 MB	8 MB
Current probes	3000 A flexible (4)	40 A/400 A clamp (4)
Carrying case	water-tight hard case with rollers	rugged hard case
Software	Fluke Power Log and FlukeView®	FlukeView®

Technical Data

Inputs

Number:	4 voltage and current (3 phases + neutral)
Maximum voltage:	1000 Vrms (6 kV peak)
Maximum sampling speed:	200 kS/s on each channel simultaneously

Volt/Amps/Hertz

Vrms (AC + DC)
Measurement range:	1 ... 1000 V
Accuracy:	0.1% of Vnom

Vpeak
Measurement range:	1 ... 1400 V
Accuracy:	5% of Vnom

Crest factor, voltage
Measurement range:	1.0 ... > 2.8
Accuracy:	±5%

Arms (AC + DC)
Measurement range:	0 ... 20 kA
Accuracy:	±0.5% ± 5 counts

Apeak
Measurement range:	0 ... 5.5 kA
Accuracy:	5%

Crest factor, A
Measurement range:	1 ... 10
Accuracy:	±5%

Hz 50 Hz nominal
Measurement range:	40 ... 70 Hz
Accuracy:	±0.01 Hz

Dips and swells

Vrms (AC+DC) ²
Measurement range:	0.0% … 100% of Vnom
Accuracy:	±0.2% of nominal voltage

Arms (AC+DC) ²
Measurement range:	0 ... 20 kA
Accuracy:	±1% ± 5 counts

Harmonics

Harmonic (interharmonic) (n)
Measurement range:	DC, 1..50; (Off, 1..49) measured according to IEC 61000-4-7

Vrms
Measurement range:	0.0 … 1000 V
Accuracy:	±0.05% of nominal voltage

Arms
Measurement range:	0.0 … 4000 mV x clamp scaling
Accuracy:	±5% ± 5 counts

Watts
Measurement range:	Depends on clamp scaling and voltage
Accuracy:	±5% ± n x 2% or reading, ± 10 counts

DC voltage
Measurement range:	0.0 … 1000 V
Accuracy:	±0.2% of nominal voltage

THD
Measurement range:	0.0 … 100.0%
Accuracy:	±2.5% V and A (± 5% Watt)

Hz
Measurement range:	0 … 3500 Hz
Accuracy:	± 1 Hz

Phase angle
Measurement range:	-360º ... +360º
Accuracy:	± n × 1.5º

Power and energy

Watt, VA, VAR
Measurement range:	1.0 … 20.00 MVA¹
Accuracy:	±1% ± counts

kWh, kVAh, kVARh
Measurement range:	00.00 …200.0 GVAh¹
Accuracy:	± 1.5% ± 10 counts

Power Factor/ Cos Ф / DPF
Measurement range:	0…1
Accuracy:	± 0.03

Flicker

Pst (1 min), Pst, Plt, PF5
Measurement range:	0.00 … 20.00
Accuracy:	±5%

Unbalance

Volts
Measurement range:	0.0 … 5.0%
Accuracy:	±0.5%

Current
Measurement range:	0.0 … 20%
Accuracy:	± 1%

Transient Capture

Volts
Measurement range:	±6000 V
Accuracy:	±2.5% of Vrms
Minimum detect duration	5 µs (200kS/s sampling)

Inrush mode

Arms (AC+DC)
Measurement range:	0.000 … 20.00 kA¹
Accuracy:	±1% of meas ± 5 counts

Inrush duration (selectable)
Measurement range:	7.5 s ... 30 min
Accuracy:	±20 ms (Fnom = 50 Hz)

Autotrend recording

Sampling:	5 readings/sec continuous sampling per channel
Memory:	1800 min, max and avg points for each reading
Recording time:	Up to 450 days
Zoom:	Up to 12x horizontal zoom

Memory

Screens & data:

50, shared memory divided between logging, screens and data sets

Brand	Fluke
MPN	FLUKE 435

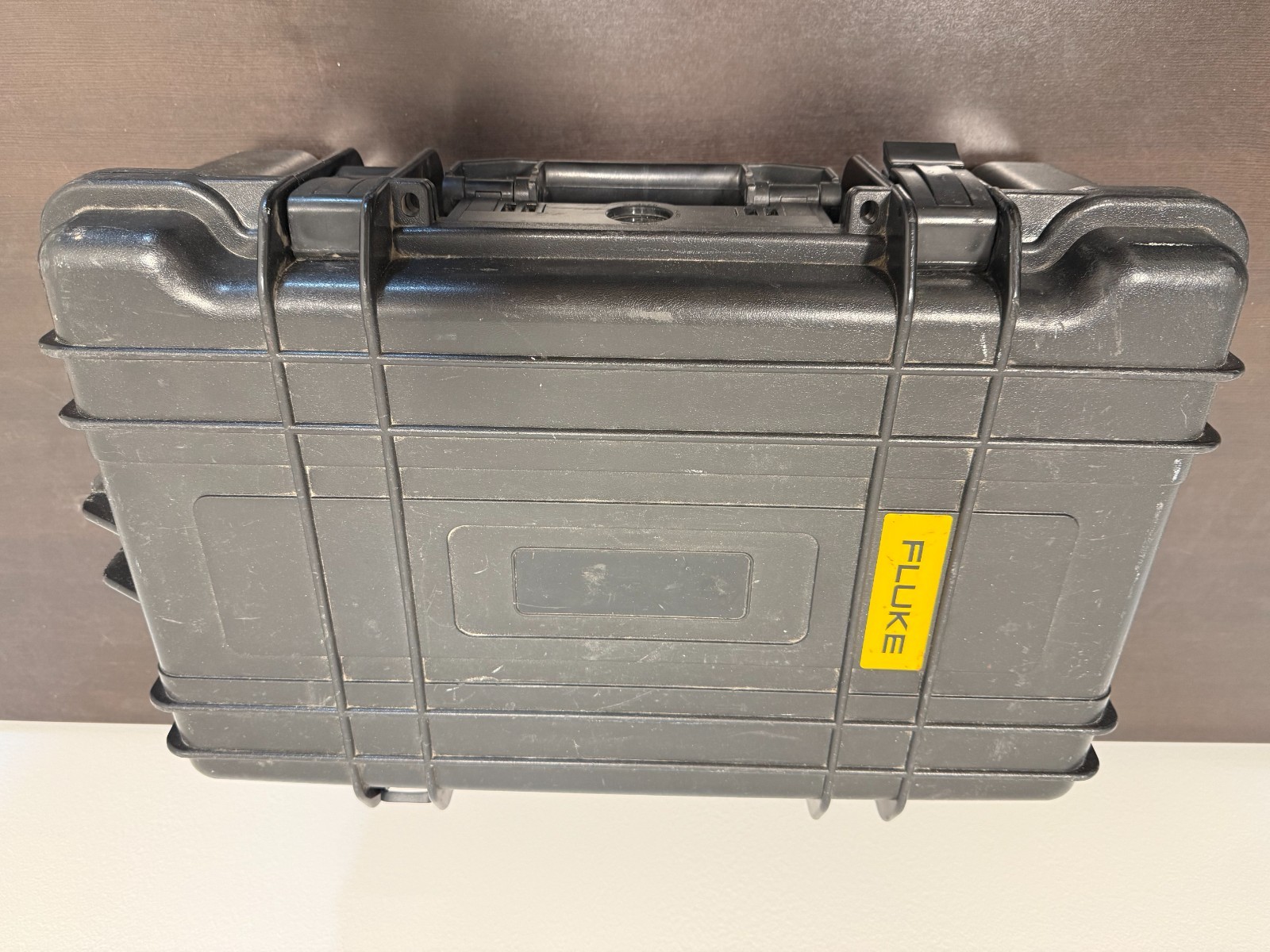

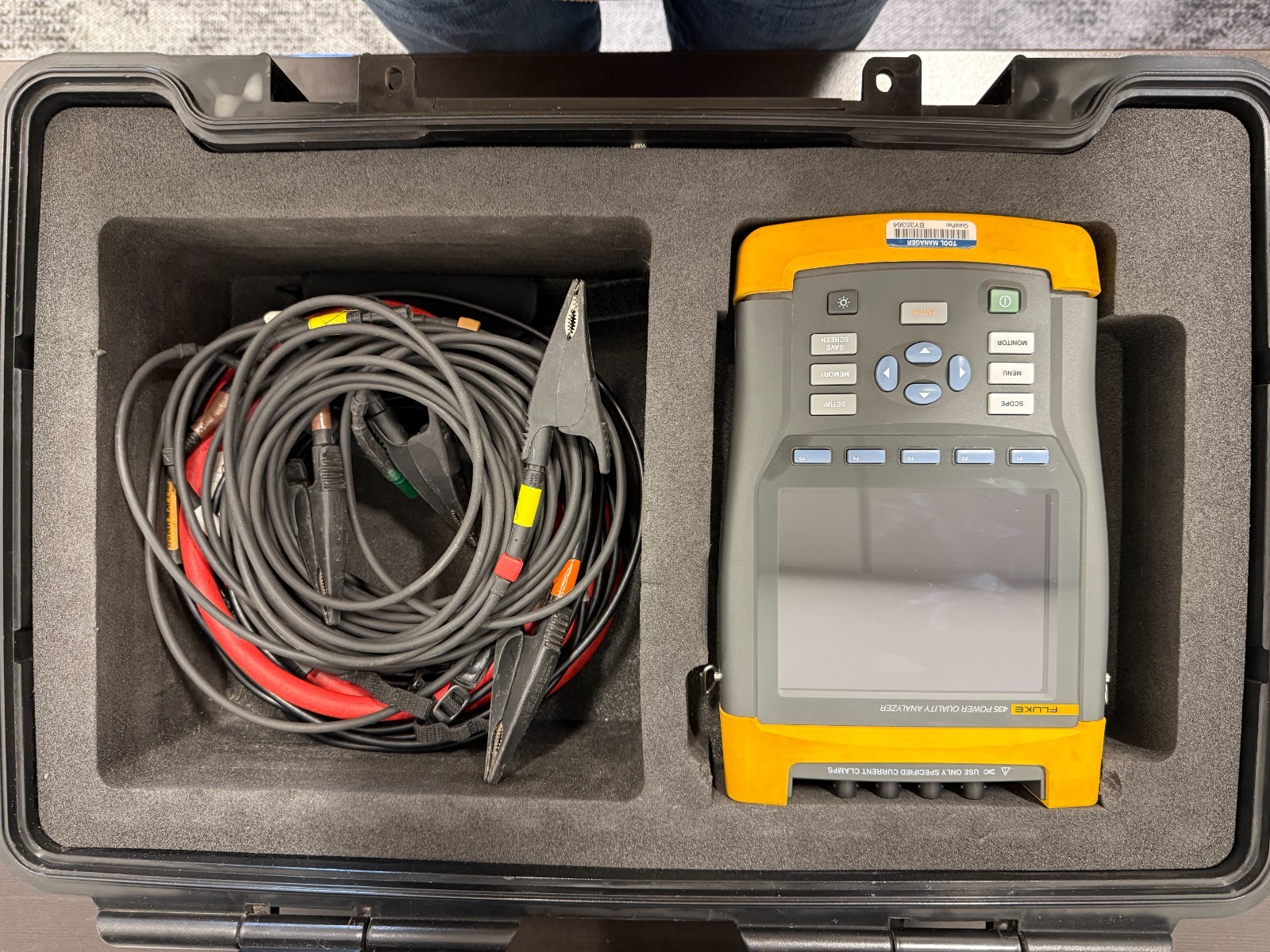

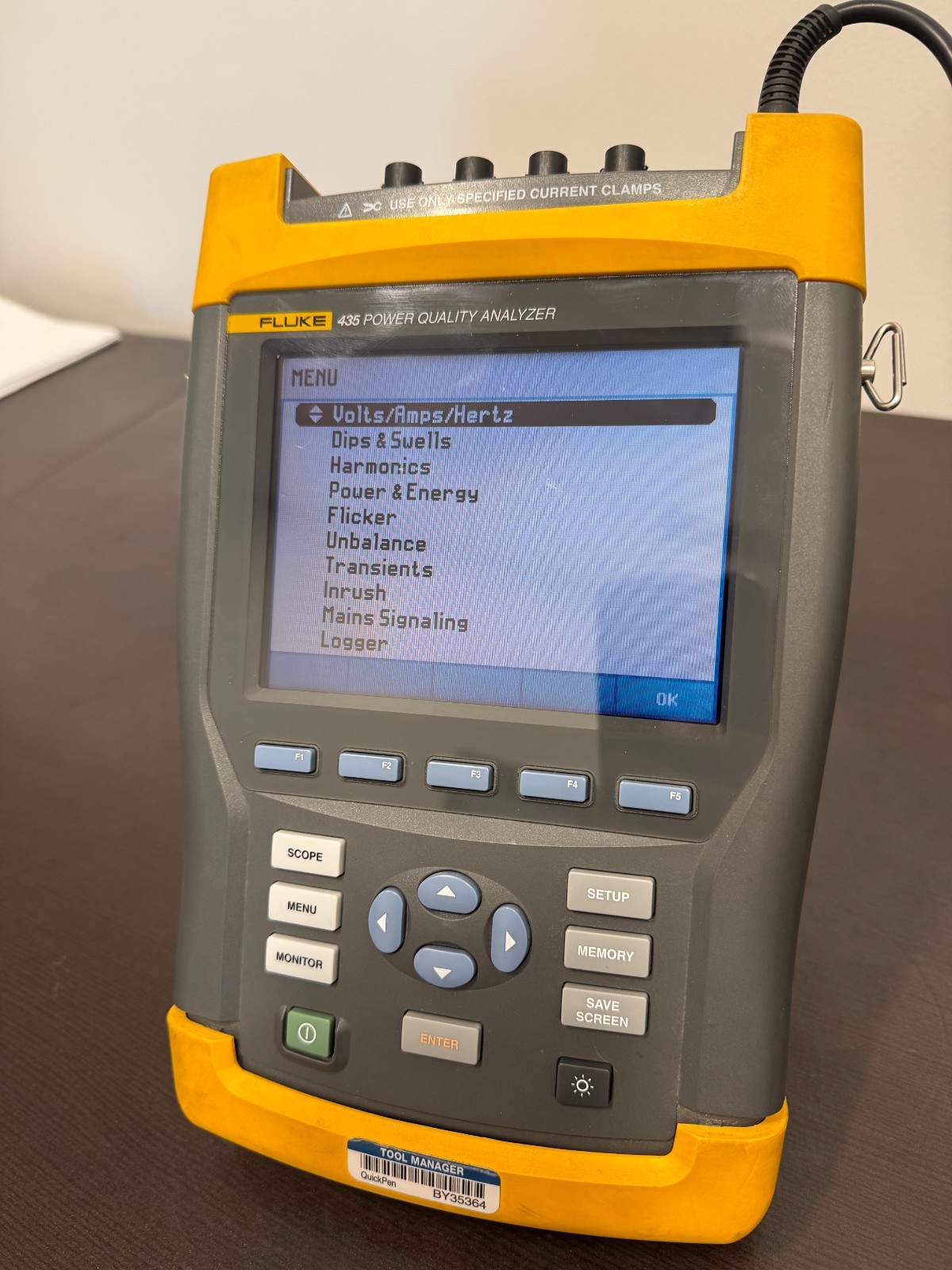

Fluke 435 Power Quality Analyzer with Fluke Hard Case
