Product Description:

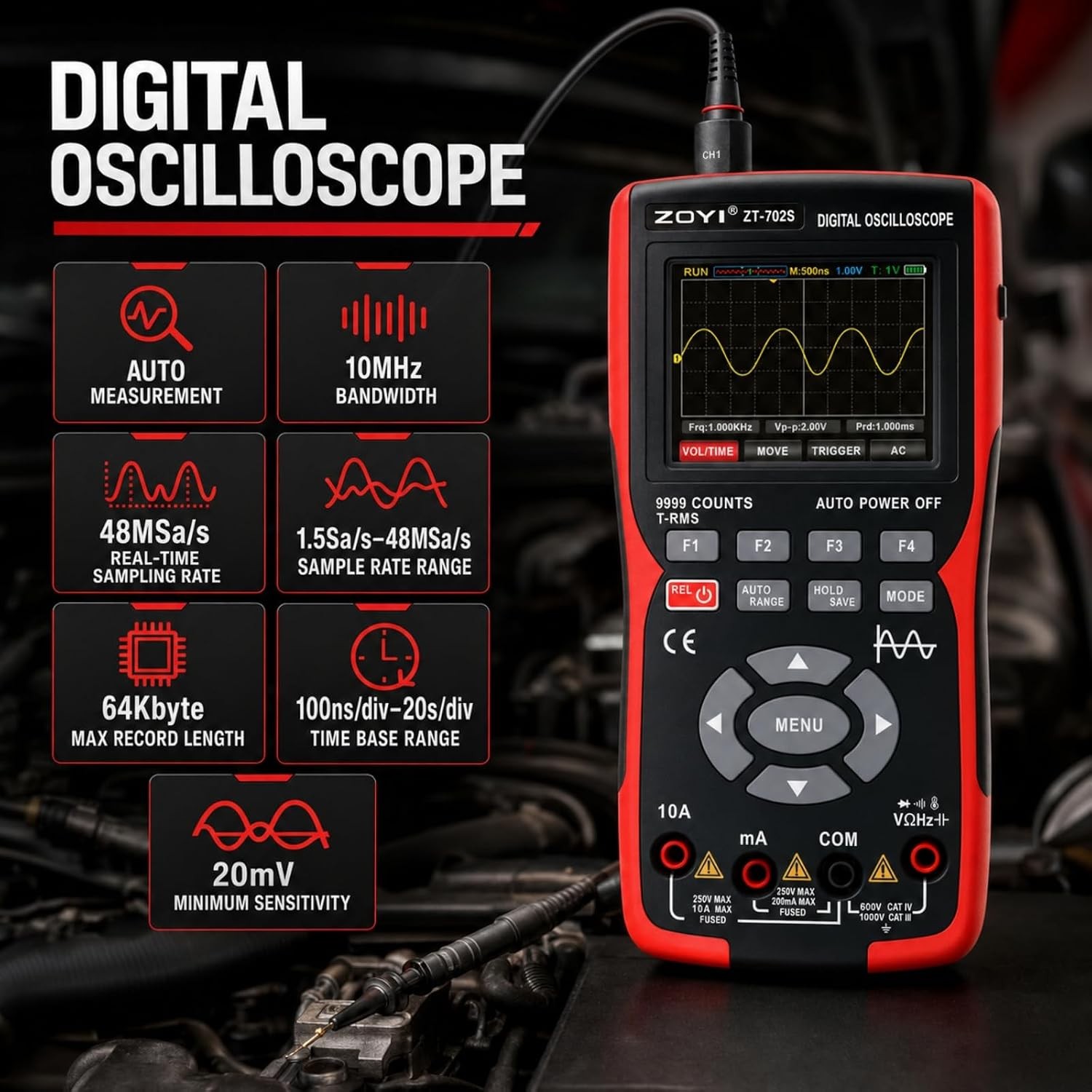

2.8-inch IPS full-view color screen oscilloscope multimeter:Trigger Function Auto/Nomal/Single, ±400V input, automatic measurement scan, 200mv/div-10v/div vertical sensitivity,8/50ns/div-20S/div horizontal scan range, 20ppm time base Accuracy digital oscilloscope

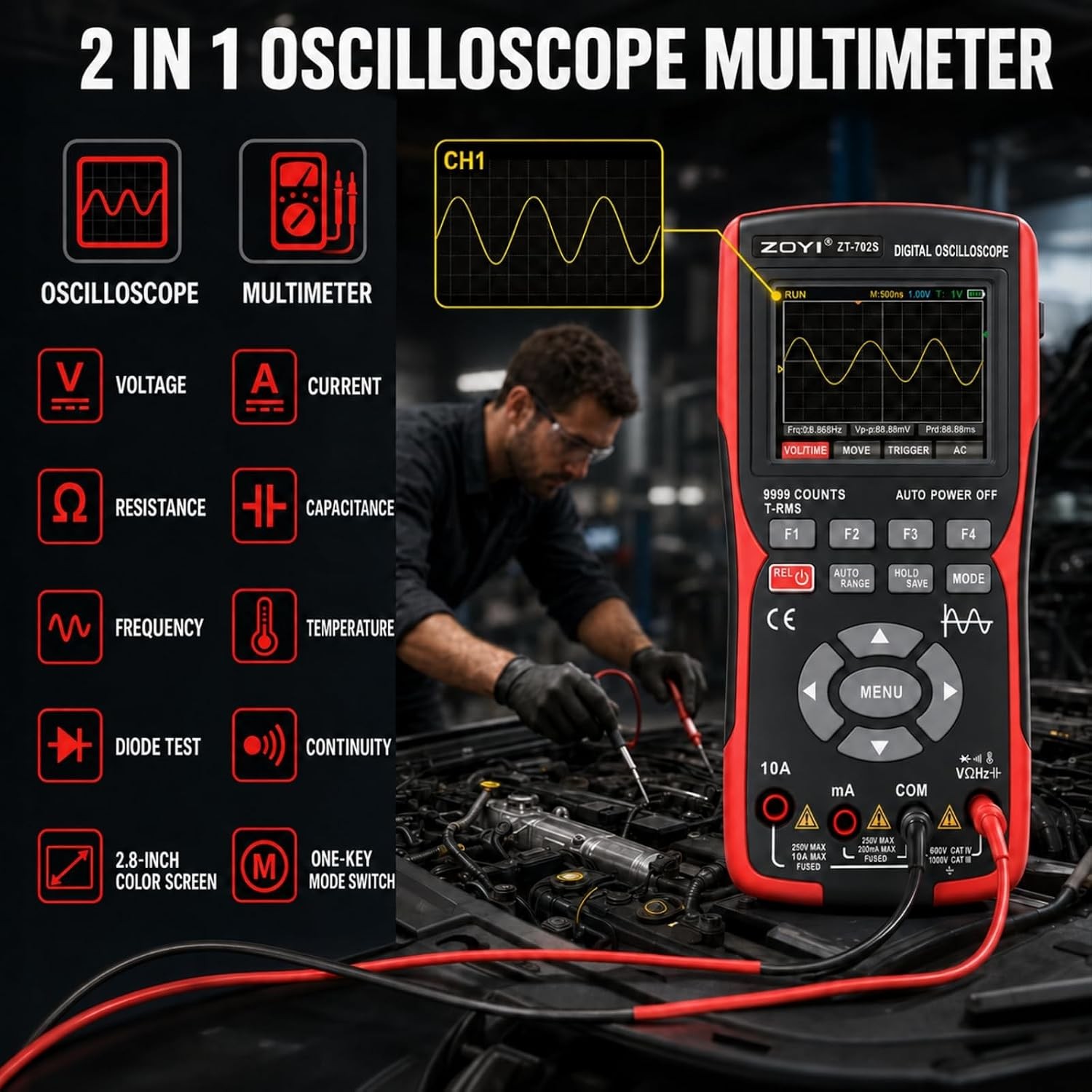

Dual mode design of oscilloscope and multimeter: one-button switch mode 、automatic obtain waveform, time base calibration, data storage, data export, language selection, shutdown time setting, backlight adjustable, data transmission port, 3V-1kHZ square wave output, memory and other functions, easy to operate, Improve work efficiency. digital oscilloscope multimeter widely used in automotive, industrial equipment, sensors, heavy electrical equipment, finishing and low voltage systems.

Multimeter Tester Mode: 9999 counts; AC voltage: 0-750V; DC voltage: 0-999.9V; DC/AC current: 0-9.999A; resistance: 0-99.99MΩ; capacitance: 0-9.999mF ; Frequency: 0-99.99kHZ; Temperature: -20°C-1000°C, diode, continuity measurement. It is suitable for voltage tester instrument of household, school, shopping mall, and laboratory circuit system, and can also be used for digital multimeter of socket, switch, lamp and low-voltage circuit.

Safety overload protection:conforms to CTA III 1000V, CTA II 600V safety level, meets CE certification requirements, A/D high sampling conversion, 200mA-10A double ceramic fuse, ABS+TPE double injection molding process, strong Durable.

A multi-purpose Automotive oscilloscope multimeter equipped with a 1X2000mAh power supply and USB charging cable. The charging and data transmission channels share a TP-C interface, which can also be used during charging. Equipped with a 4V/1KHz square wave signal generator, product size: 6.97-3.51-1.57In.

【24-Hour After-Sales Service】 If you have any questions, please contact us and we will handle it properly within 24 working hours.

2 in 1 Handheld Automotive Oscilloscope Multimeter - 10MHz Bandwidth 48MS/s
